C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration
– 498 –
multicast traffic from one of the MVR groups, or a multicast group has
been statically assigned to an interface.
◆ Immediate Leave – Configures the switch to immediately remove an
interface from a multicast stream as soon as it receives a leave
message for that group. (This option only applies to an interface
configured as an MVR receiver.)
WEB INTERFACE
To configure interface settings for MVR:
1. Click Multicast, MVR.
2. Select Configure Interface from the Step list.
3. Set each port that will participate in the MVR protocol as a source port
or receiver port, and optionally enable Immediate Leave on any
receiver port to which only one subscriber is attached.
4. Click Apply.

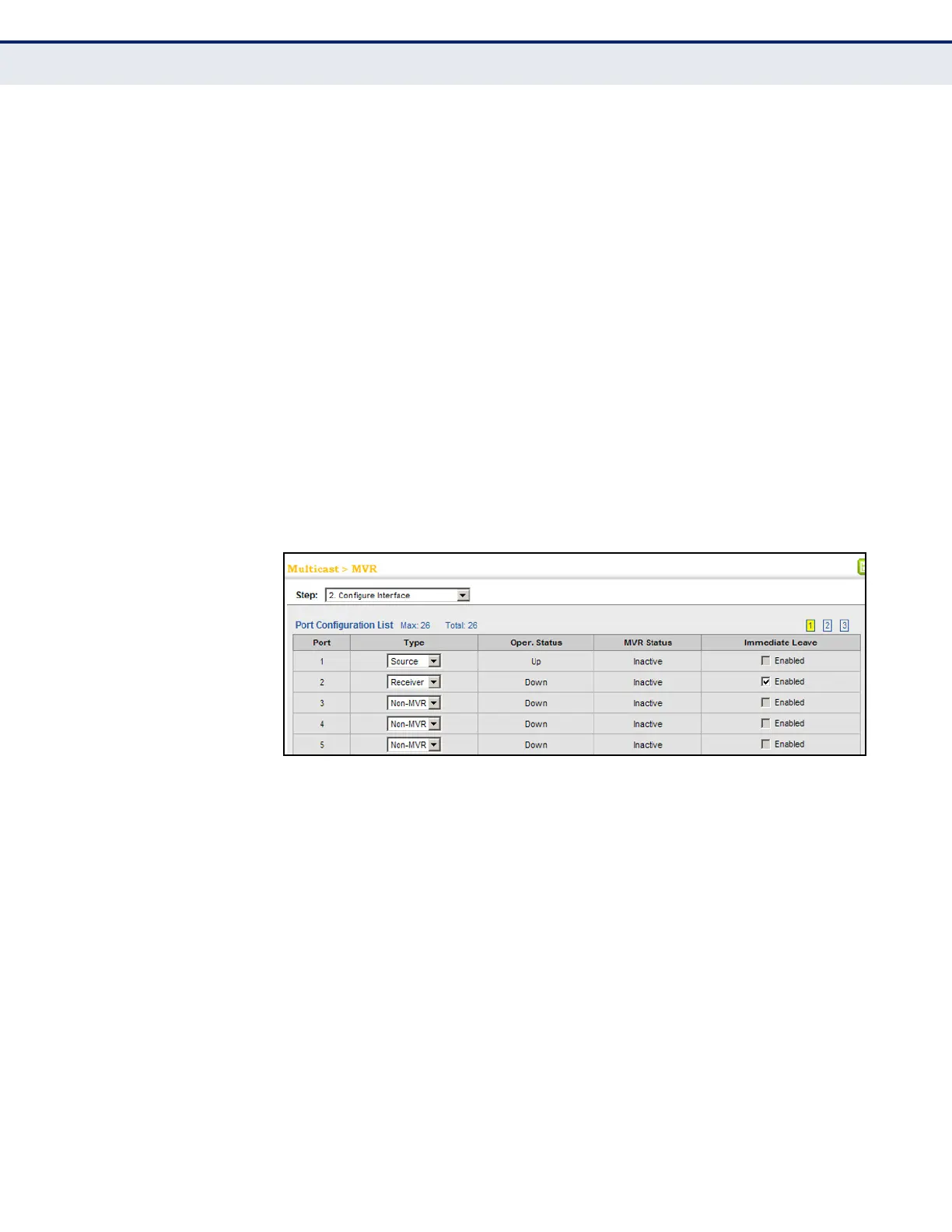

Figure 301: Configuring Interface Settings for MVR
ASSIGNING STATIC
MVR MULTICAST
GROUPS TO
INTERFACES
Use the Multicast > MVR (Configure Static Group Member) page to
statically bind multicast groups to a port which will receive long-term
multicast streams associated with a stable set of hosts.
CLI REFERENCES
◆ "mvr vlan group" on page 917
COMMAND USAGE
◆ Multicast groups can be statically assigned to a receiver port using this
configuration page.
◆ The IP address range from 224.0.0.0 to 239.255.255.255 is used for
multicast streams. MVR group addresses cannot fall within the reserved
IP multicast address range of 224.0.0.x.
