| Interface Configuration
Trunk Configuration
– 157 –
WEB INTERFACE
To display LACP settings and status for the remote side:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Aggregation Port from the Step list.
3. Select Show Information from the Action list.
4. Click Internal.
5. Select a group member from the Port list.

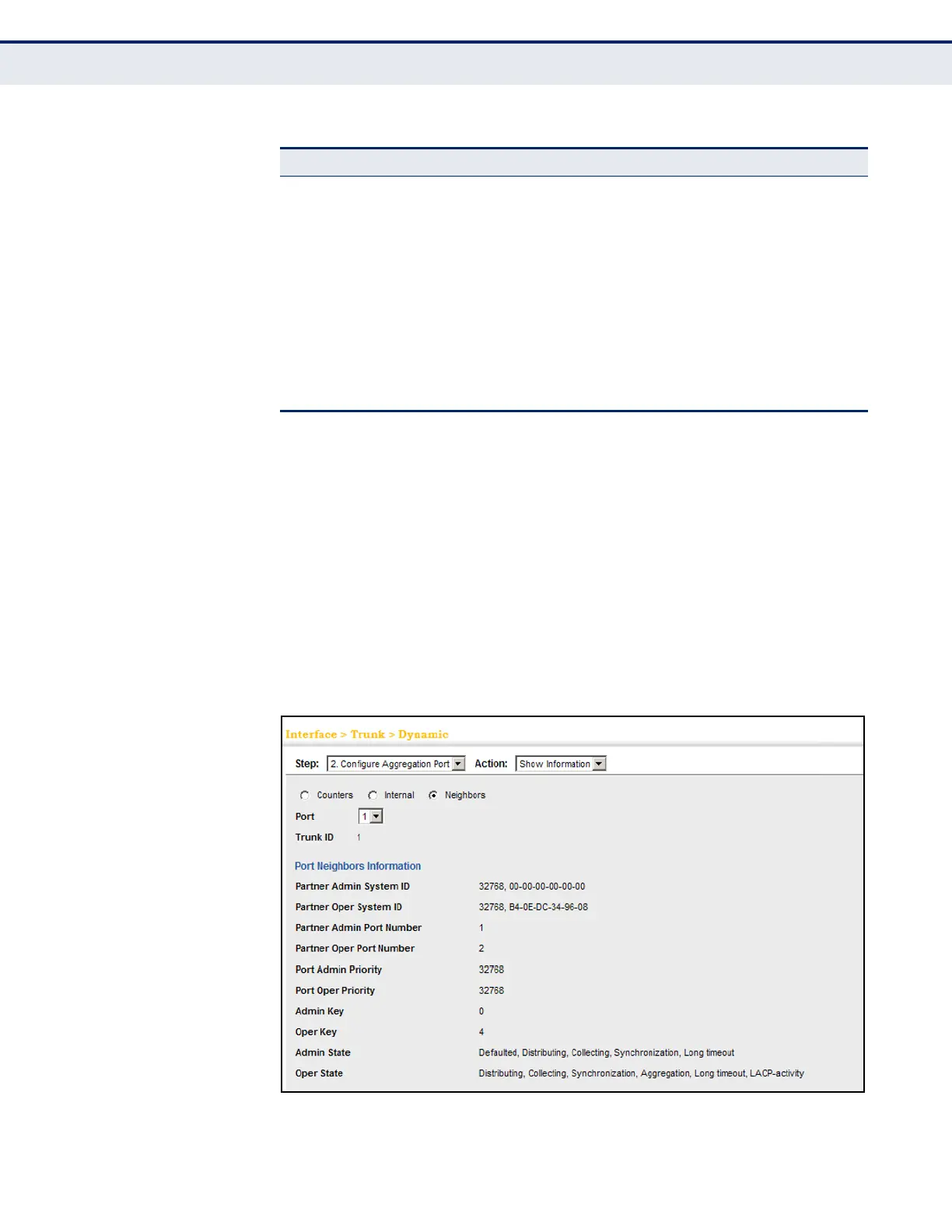

Figure 51: Displaying LACP Port Remote Information
Partner Oper
Port Number
Operational port number assigned to this aggregation port by the
port’s protocol partner.
Port Admin Priority Current administrative value of the port priority for the protocol
partner.
Port Oper Priority Priority value assigned to this aggregation port by the partner.
Admin Key Current administrative value of the Key for the protocol partner.
Oper Key Current operational value of the Key for the protocol partner.
Admin State Administrative values of the partner’s state parameters. (See
preceding table.)
Oper State Operational values of the partner’s state parameters. (See preceding
table.)
Table 10: LACP Remote Device Configuration Information (Continued)
Parameter Description
