C
HAPTER
17
| Multicast Filtering
Layer 2 IGMP (Snooping and Query)
– 481 –

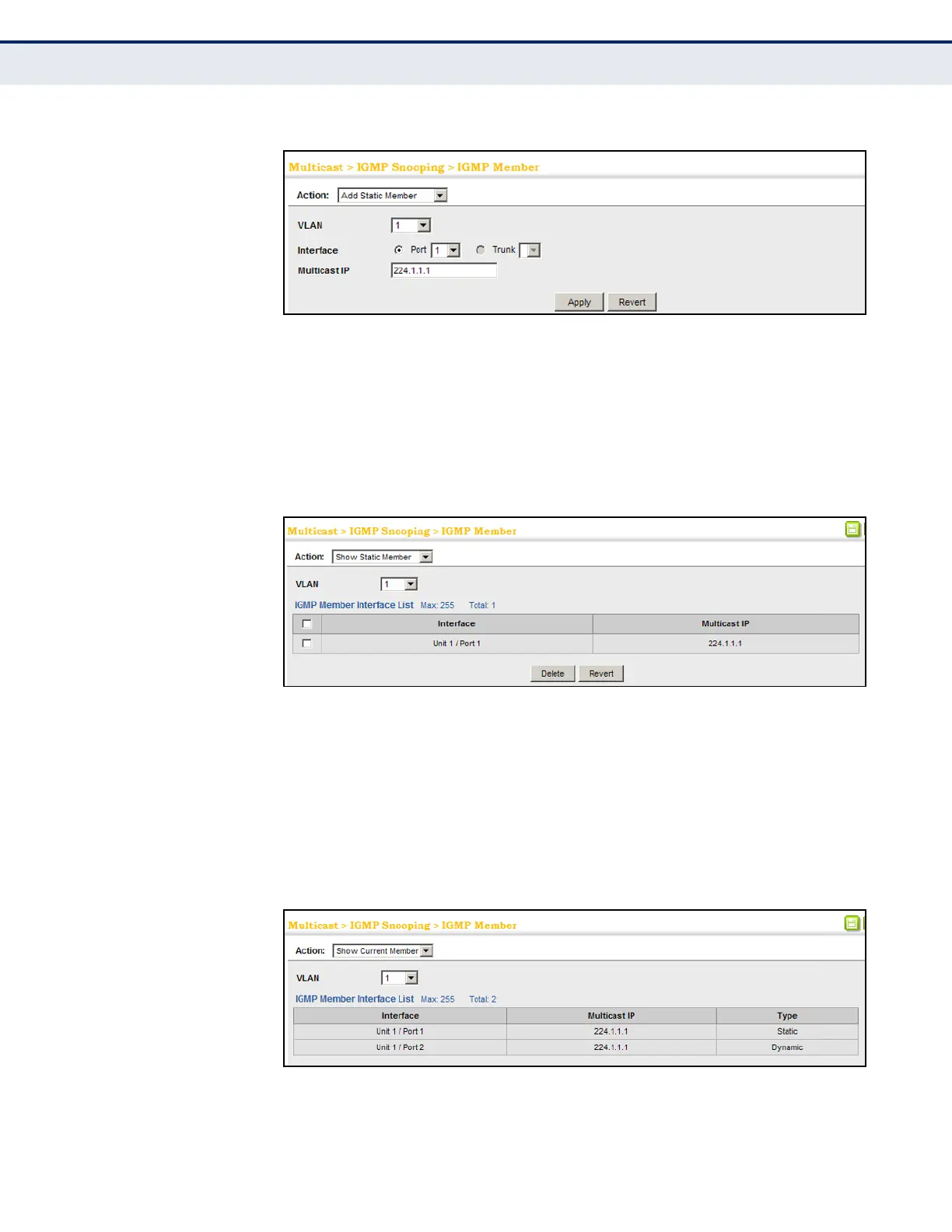

Figure 287: Assigning an Interface to a Multicast Service
To show the static interfaces assigned to a multicast service:
1. Click Multicast, IGMP Snooping, IGMP Member.
2. Select Show Static Member from the Action list.
3. Select the VLAN for which to display this information.
Figure 288: Showing Static Interfaces Assigned to a Multicast Service
To show the all interfaces statically or dynamically assigned to a multicast
service:
1. Click Multicast, IGMP Snooping, IGMP Member.
2. Select Show Current Member from the Action list.
3. Select the VLAN for which to display this information.
Figure 289: Showing Current Interfaces Assigned to a Multicast Service
