RX2520 M4 Upgrade and Maintenance Manual 271
Accessible drives

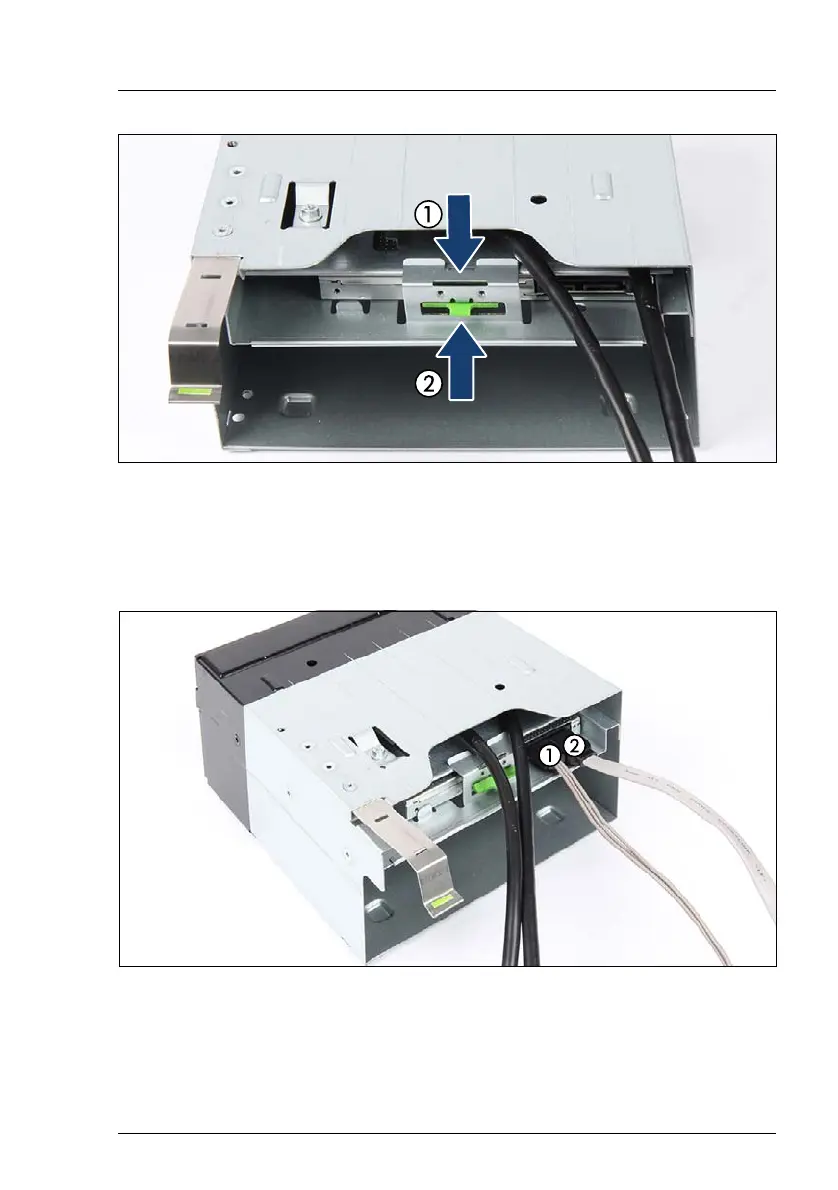

Figure 169: Installing the ODD (B)
Ê Press on the latch from topside (see arrow 1), while sliding in the ODD, to
make the engagement of ODD latch easier.
Ê Push the ODD latch upward, so that ODD latch is engaged firmly (2).
Figure 170: Connecting cables to the ODD
Ê Connect the cables to the ODD:
– (1) ODD power cable C16 to connector "ODD PWR".
– (2) ODD SATA cable C3 to connector "ODD Data".
