398 Upgrade and Maintenance Manual
RX2520 M4
iRMC-related status signals
I For more information, see section "Updating or recovering the BIOS and
iRMC S5" on page 72.

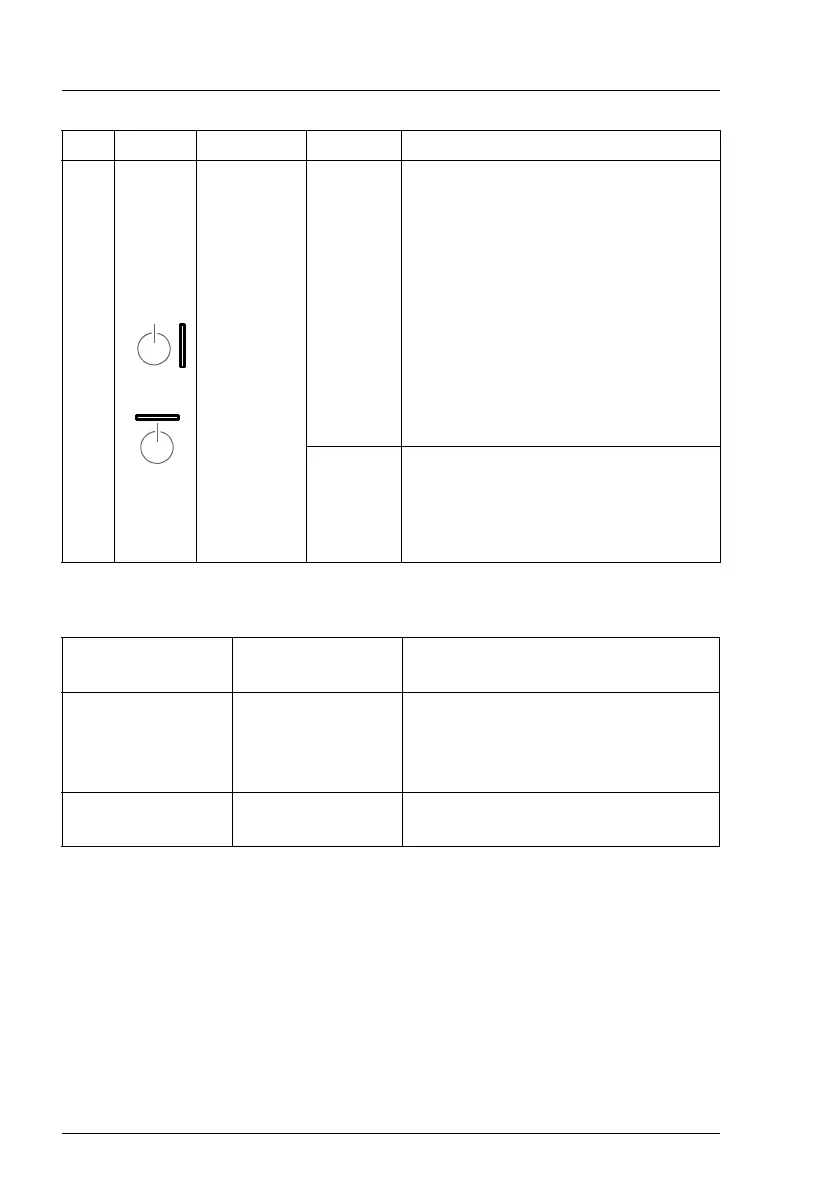

6
AC
connected
indicator
green on
– The server is switched off and
connected to the mains (standby
mode).
– The server has been switched on
but Power Cycle Delay settings
delay it from turning on for a
specified time.
I
After connecting the server to
the mains, it will take about 60
seconds until the server will
enter standby mode and can be
switched on.
off
– The server is switched off and not
connected to the mains.
– The server is switched on and
operating normally.
ID indicator
Global error
indicator
Description
blue flashing off
A remote connection has been
established. Local VGA output has
been disabled during the remote
session.
blue flashing orange flashing
An emergency flash of the iRMC
firmware is in progress.
Pos. Label Indicator Status Description
