104 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Basic hardware procedures

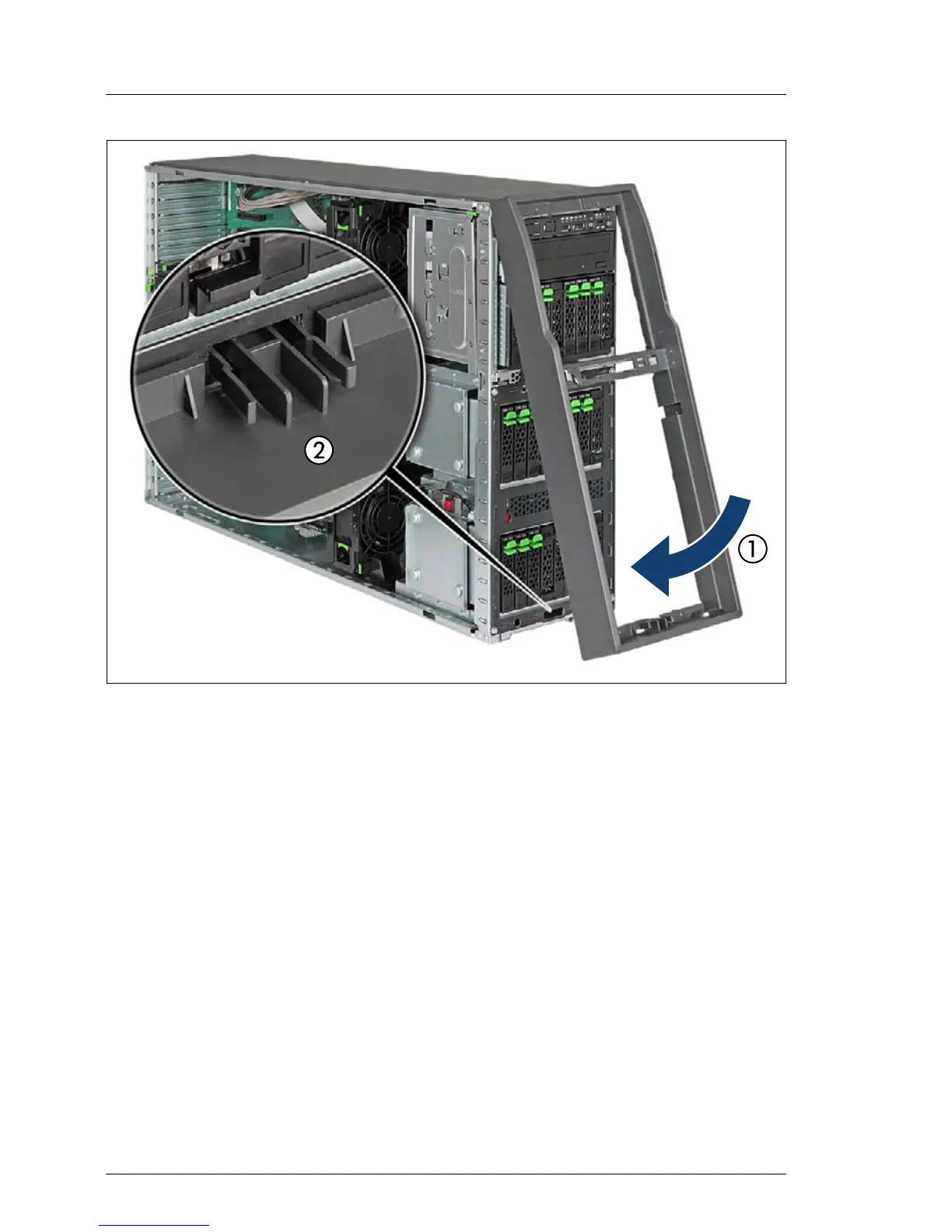

Figure 52: Mounting the front cover (tower server) (B)
Ê Fold down the front cover (1) until the locking clip on the bottom edge of the
front cover engage (2).
