Ê Press in on both locking latches on the PSU dummy module (1) and carefully
detach the dummy module from its slot (2).

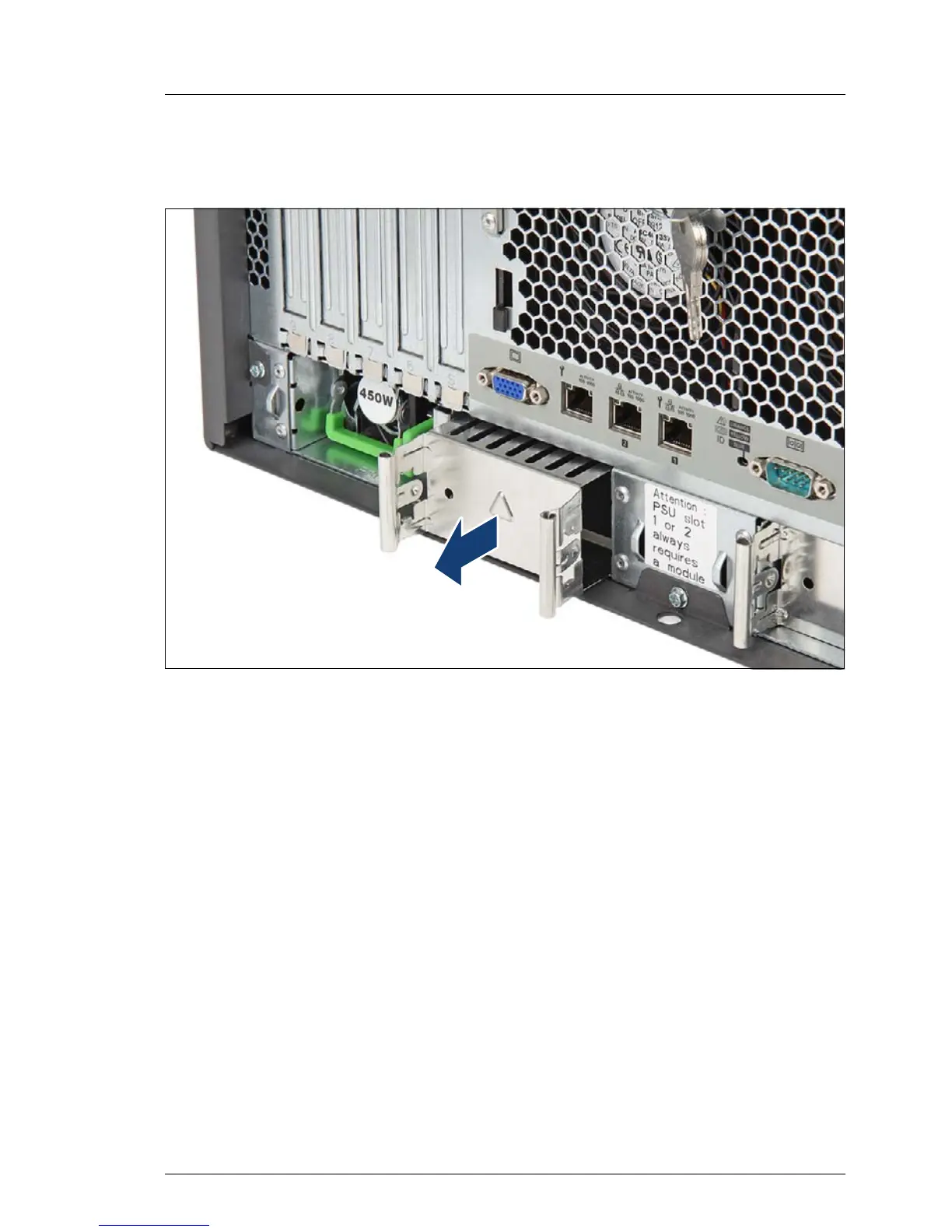

Figure 77: Removing a PSU dummy module (B)
Ê Remove the dummy module from its slot.
V CAUTION!
Keep the dummy cover for future use. If a power supply module is
removed and not immediately replaced by a new one, a PSU dummy
cover must be replaced in the slot to comply with applicable EMC
regulations and satisfy cooling requirements.
