TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 179
Power supply

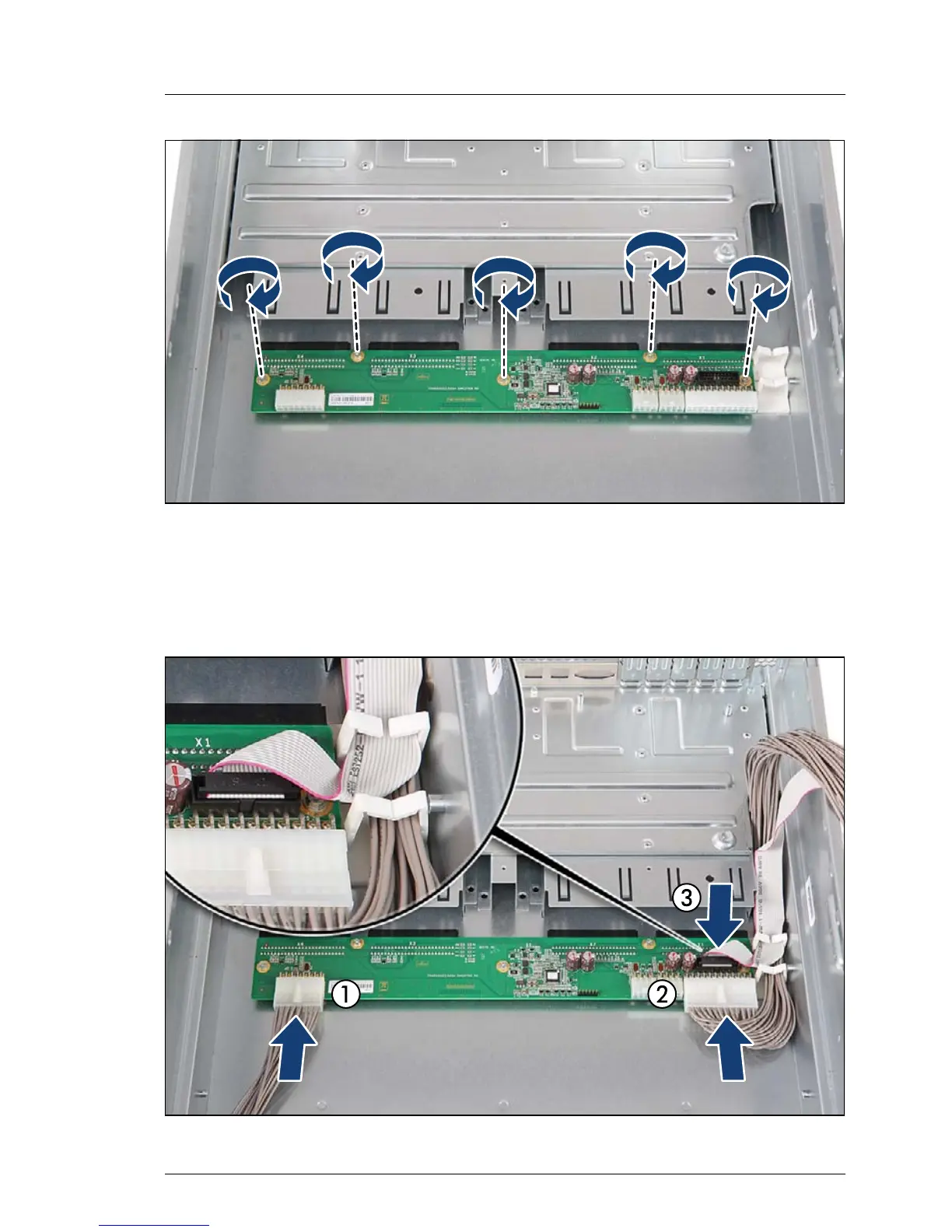

Figure 88: Mounting the power backplane (B)
Ê Lower the new power backplane into the chassis.
Ê Secure the power backplane on the spacer bolts with five screws (see
circles).
Figure 89: Cabling the power backplane (A)
