188 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Hard disk drives / solid state drives
Ê Connect the SAS 3.0 Out-of-Band cable T26139-Y4015-V601 to connector
X11 on each SAS 3.0 backplane:

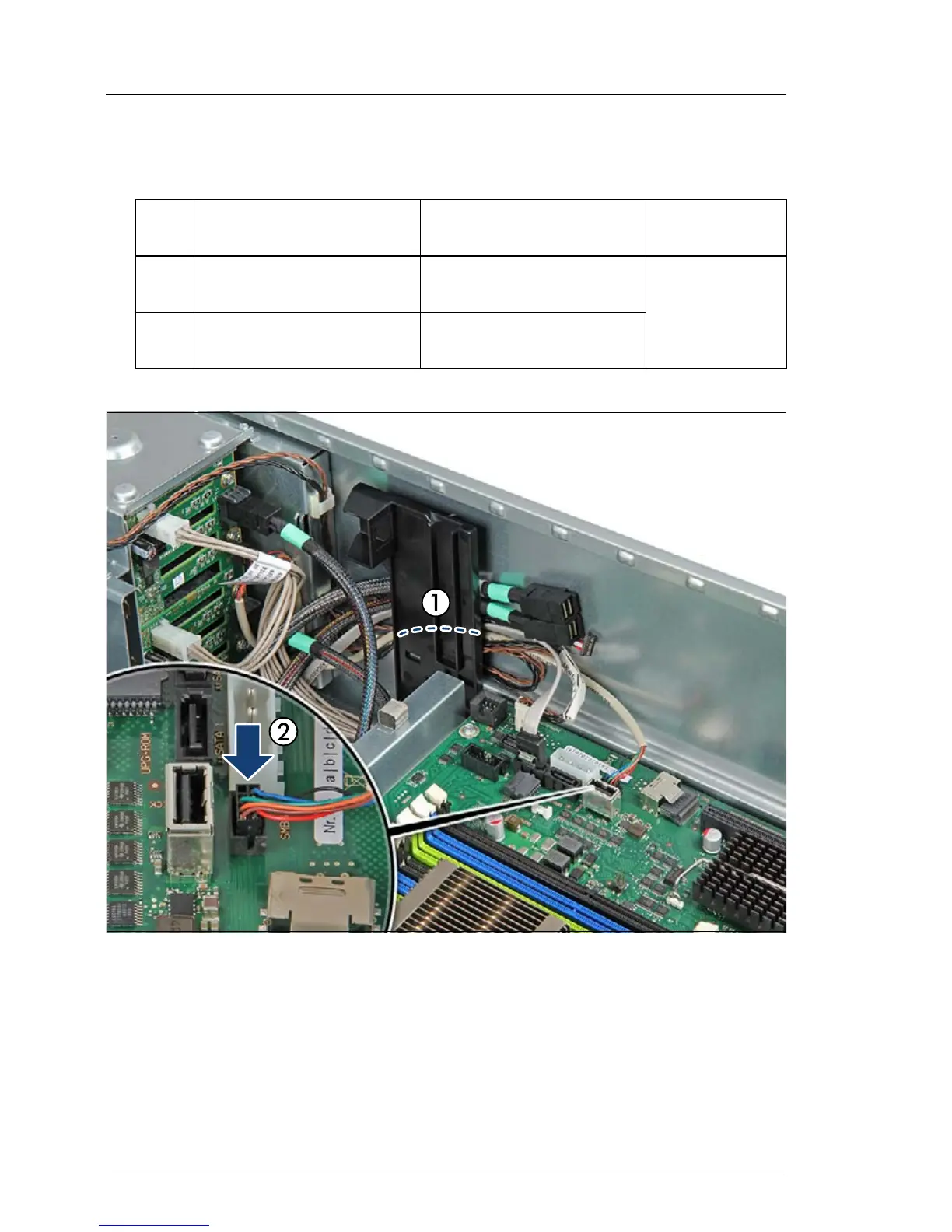

Figure 96: SAS 3.0 Out-of-Band cabling (B)
Ê Run the Out-of-Band cable through the cable guide (G) as shown (1).
Ê Connect the Out-of-Band cable to system board connector SMB4 (2).
Out-of-Band cable
connector
SAS backplane Cabling plan
1 End connector
SAS 3.0 backplane 1
connector X11
16.2.13
2 Middle connector
SAS 3.0 backplane 2
connector X11
