252 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Hard disk drives / solid state drives
Power cabling

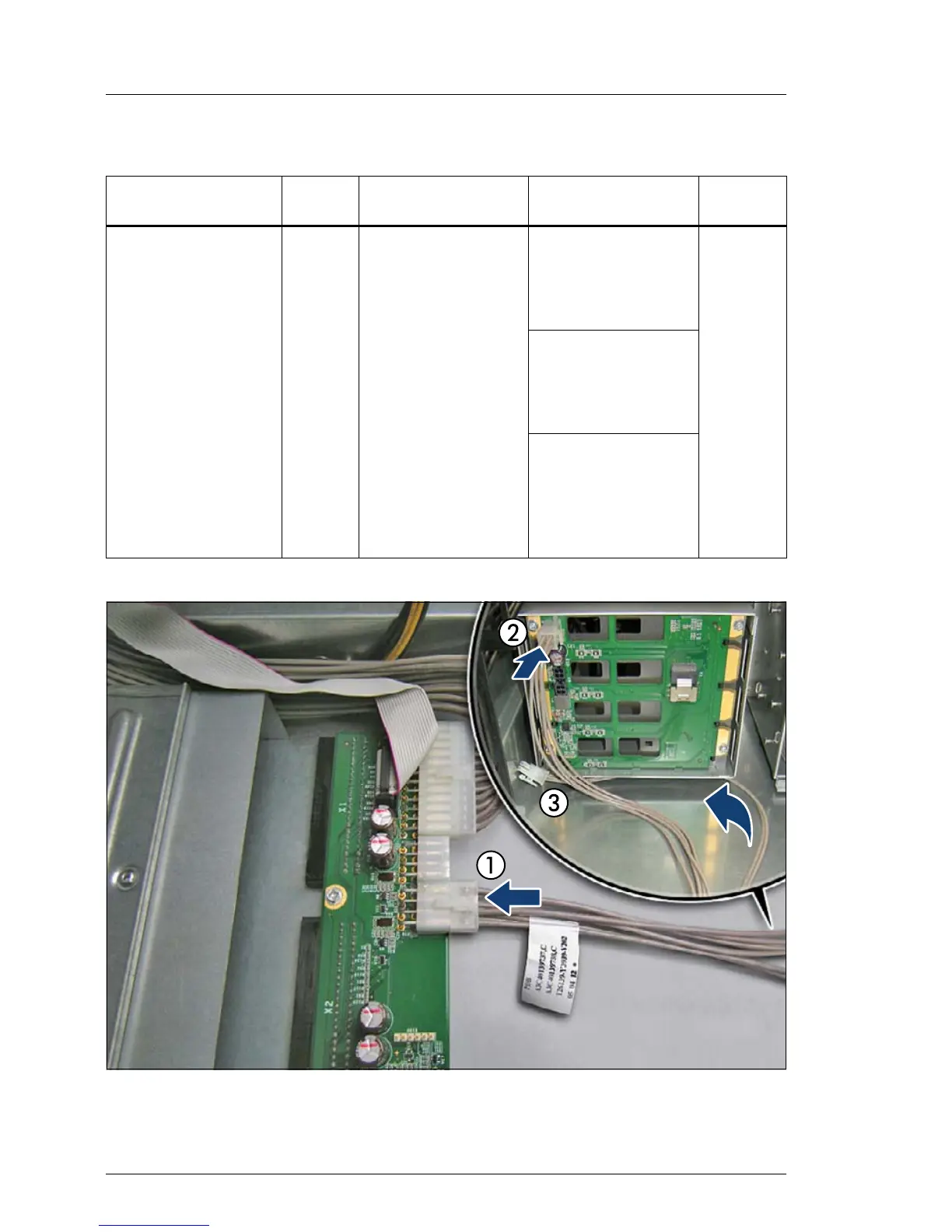

Figure 158: 4x 3.5-inch HDD extension box power cabling
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
HDD power cable
Y3952-V601
1
Power backplane
connector X21
SAS backplane 1
connector X7
(HDDs 1, 4, 7, 10)
Cable connector P1
16.2.5
SAS backplane 2
connector X7
(HDDs 2, 5, 8, 11)
Cable connector P2
4x 3.5-inch HDD
extension box SAS
backplane connector
X7 (HDDs 3, 6, 9, 12)
Cable connector P4
