TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 537
Accessible drives

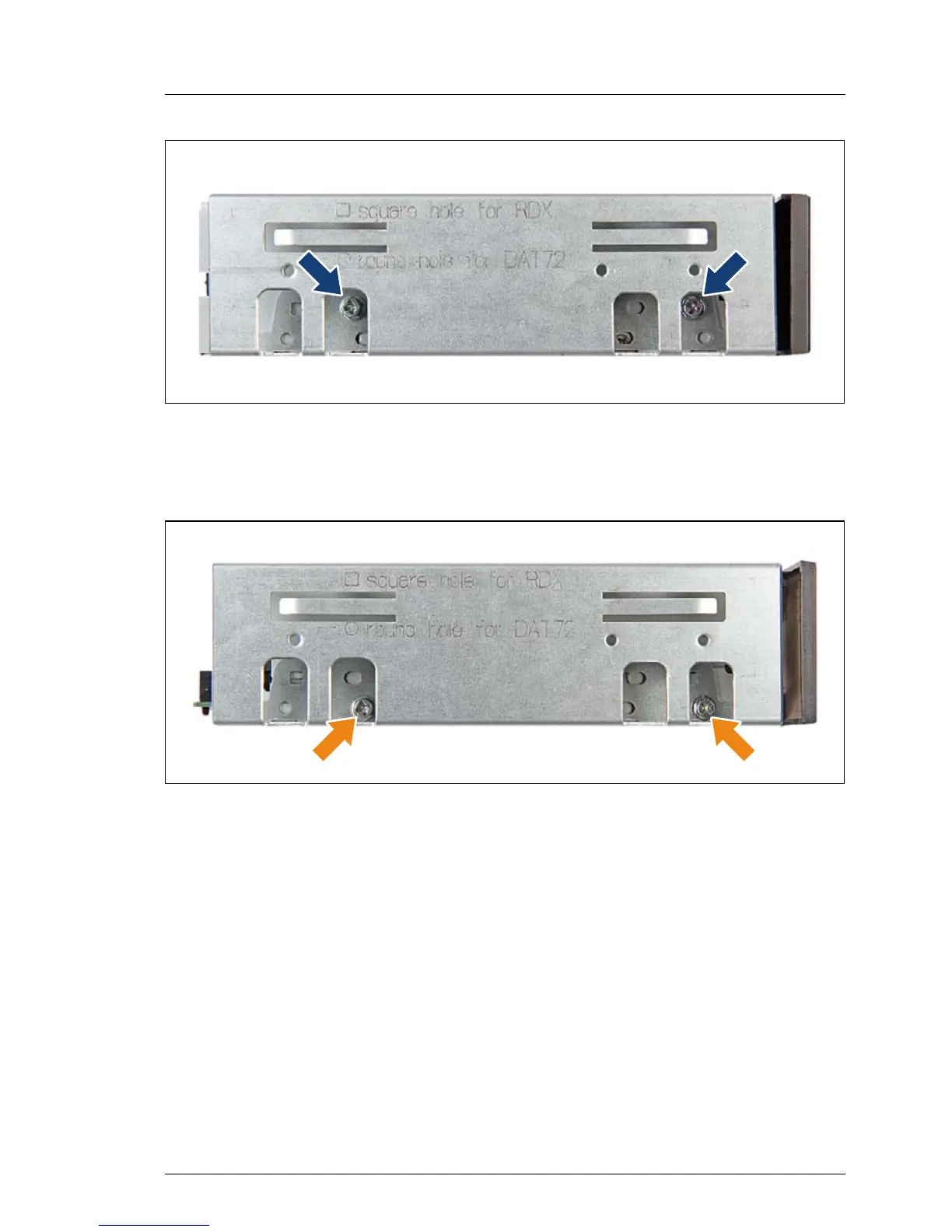

Figure 410: Securing mounting brackets to an RDX backup drive
Ê Secure the backup drive mounting brackets to the RDX backup drive with
two M3 x 4.5 screws per bracket as shown (screw torque: 0.6 Nm).
Figure 411: Securing mounting brackets to a DAT72 backup drive
Ê Secure the backup drive mounting brackets to the DAT72 backup drive with
two M3 x 4.5 screws per bracket as shown (screw torque: 0.6 Nm).
