584 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Accessible drives

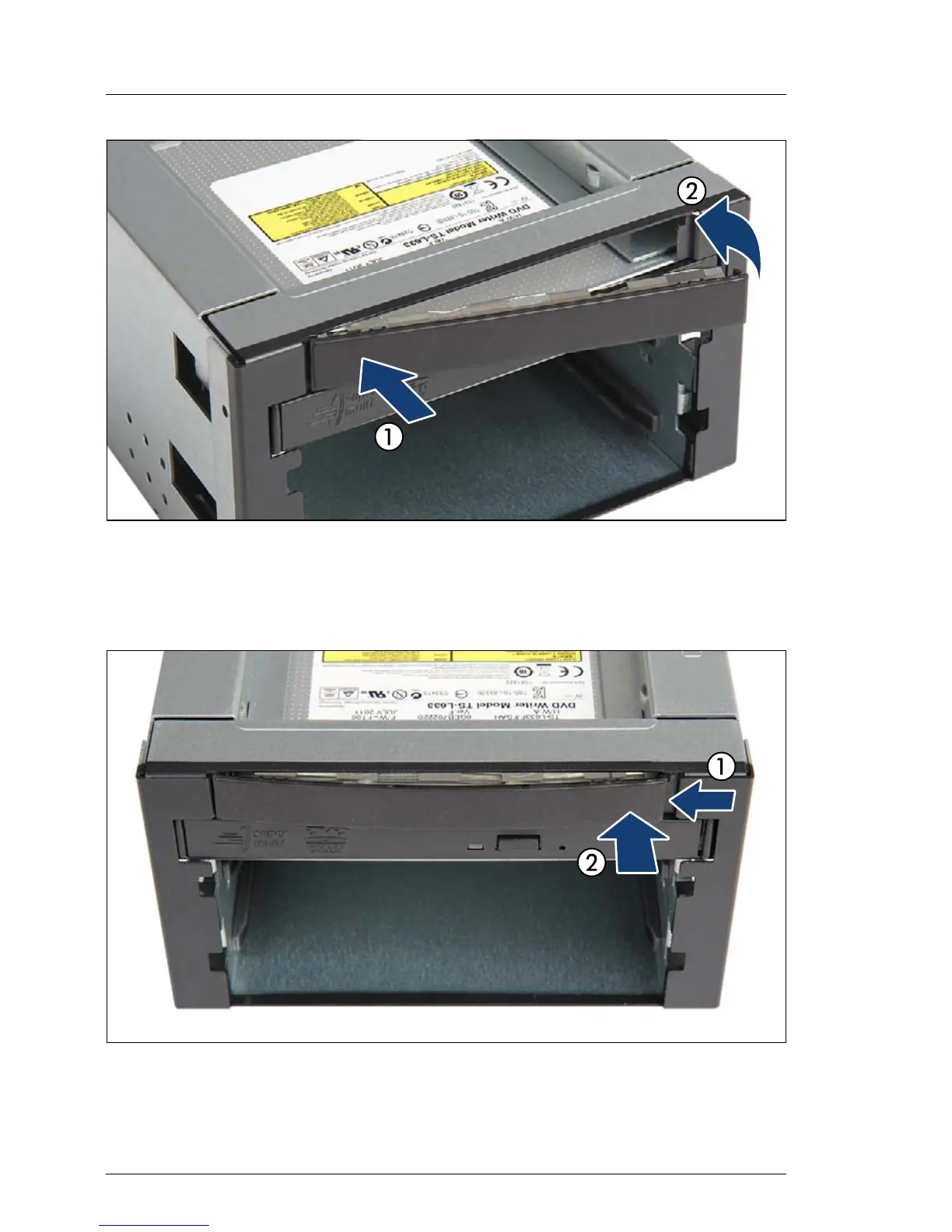

Figure 452: Removing the slimline ODD from its installation frame
Ê Fit one edge of the LSD dummy cover plate into the LSD slot (1) as shown.
Ê Fold in the dummy cover plate (2).
Figure 453: Mounting the slimline ODD dummy insert in the installation frame
Ê Carefully bend out the LSD dummy cover plate (1) and fit its other edge into
the LSD slot (2).
