638
Upgrade and Mai
ntenance Manual
TX300 S
8 / RX350 S8
Front panel and external connectors

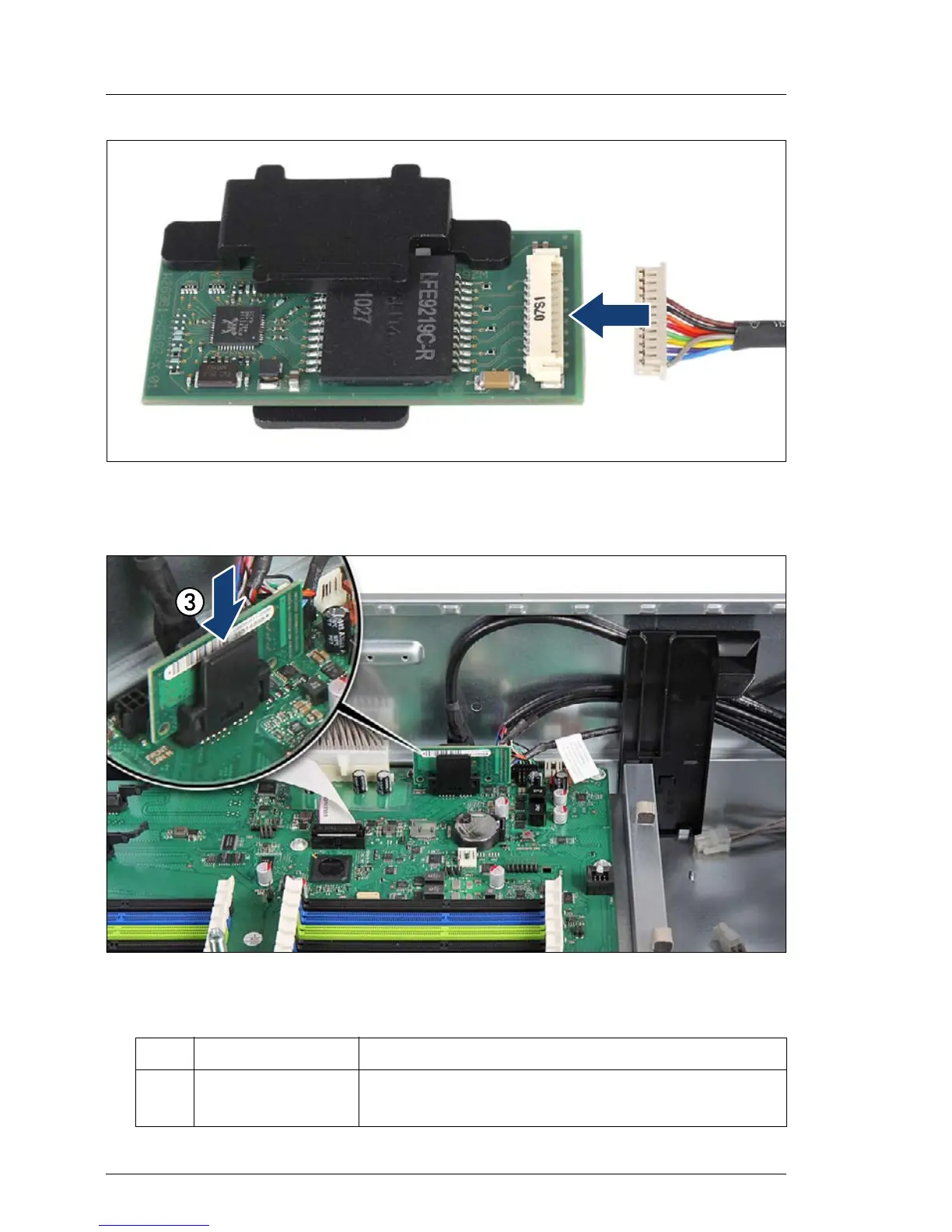

Figure 502: Connecting t
he front LA
N cable to t
he front LAN board
Ê
If applicable, connect the front LAN cable to front LAN board D2935.
Figure 503: Connecting the f
ront LAN board to the system board
Ê
If applicable, connect front LAN board D2935 to the system board:
#
Co
nnec
tor
Cabl
e
3
FRONT LAN
Front LAN cable T26139-Y4025-V1
on front LAN board D2935
637
639
