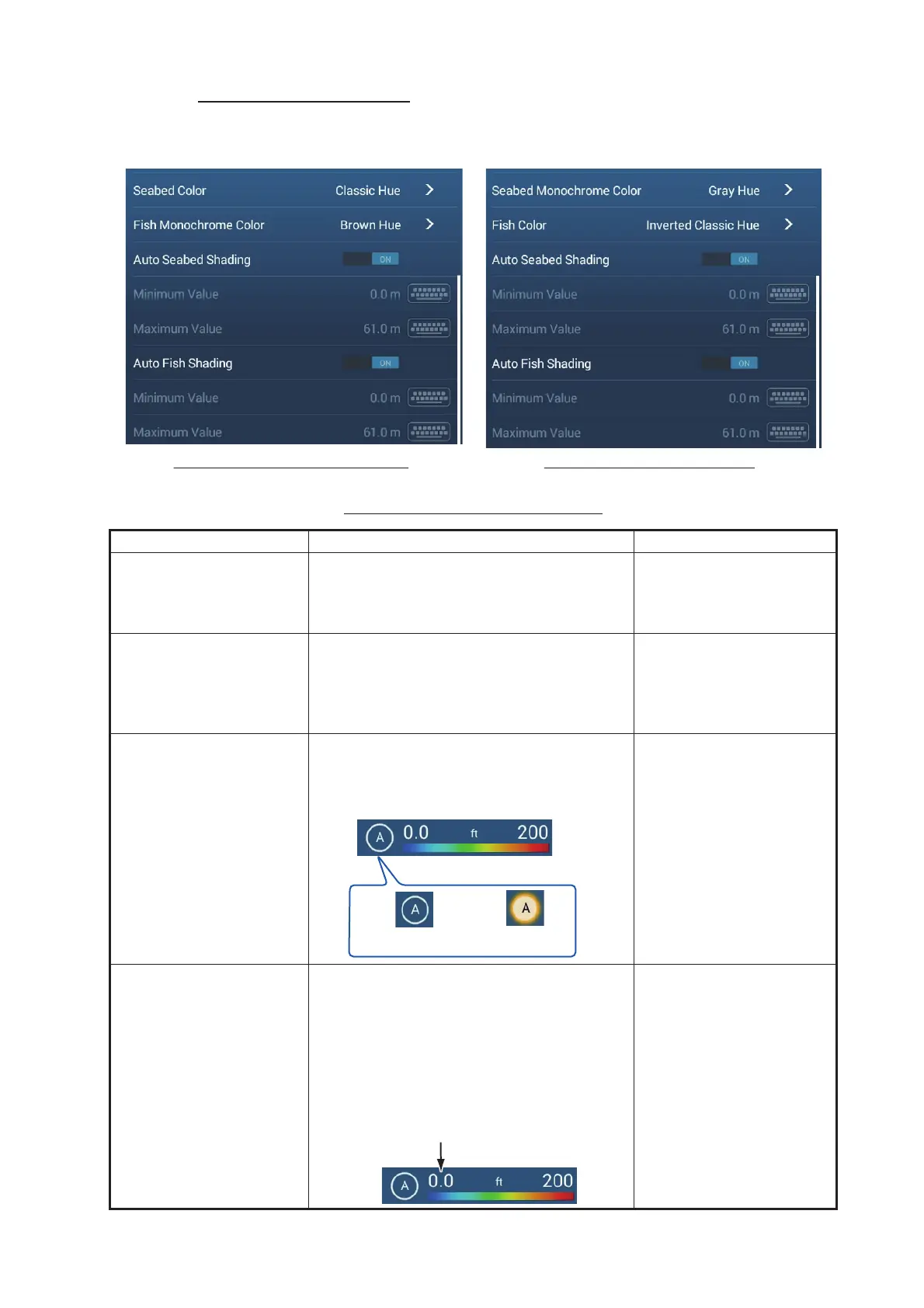

How to set color shading
Open the [3D Sounder History] menu and then set the following menus.
[Color Mode] selected to [Seabed]
Menu item Description Setting options
[Seabed Color] For setting multi tone or single tone. [Classic Hue], [Inverted
Classic Hue], [Red Hue],
[Blue Hue], [Green Hue],
[Yellow Hue]
[Fish Monochrome Color] For setting single tone or single color. [Gray Hue], [Brown Hue],
[Red], [Green], [Blue],
[Cyan], [Magenta], [Black
Or White], [Pink], [Light
Green], [Yellow]
[Auto Seabed Shading] Use automatic or manual seabed shading. [OFF] (manual),
[ON] (automatic)
[Minimum Value] Use the software keyboard to set the shal-
lowest depth to use. [Auto Seabed Shad-
ing] must be [OFF] to enter depth.
Alternatively, tap the minimum value indica-
tion on the color bar scale to show the slider
bar. Drag the slider bar to set. Tap [Done] to
finish.
0 to 3936 (ft)
[Color Mode] selected to [Seabed] [Color Mode] selected to [Fish]
Manual mode Auto mode
Tap [A] to switch between automatic
and manual depth/color shading
scale setting mode.
[Minimum Value]
Shallowest depth
