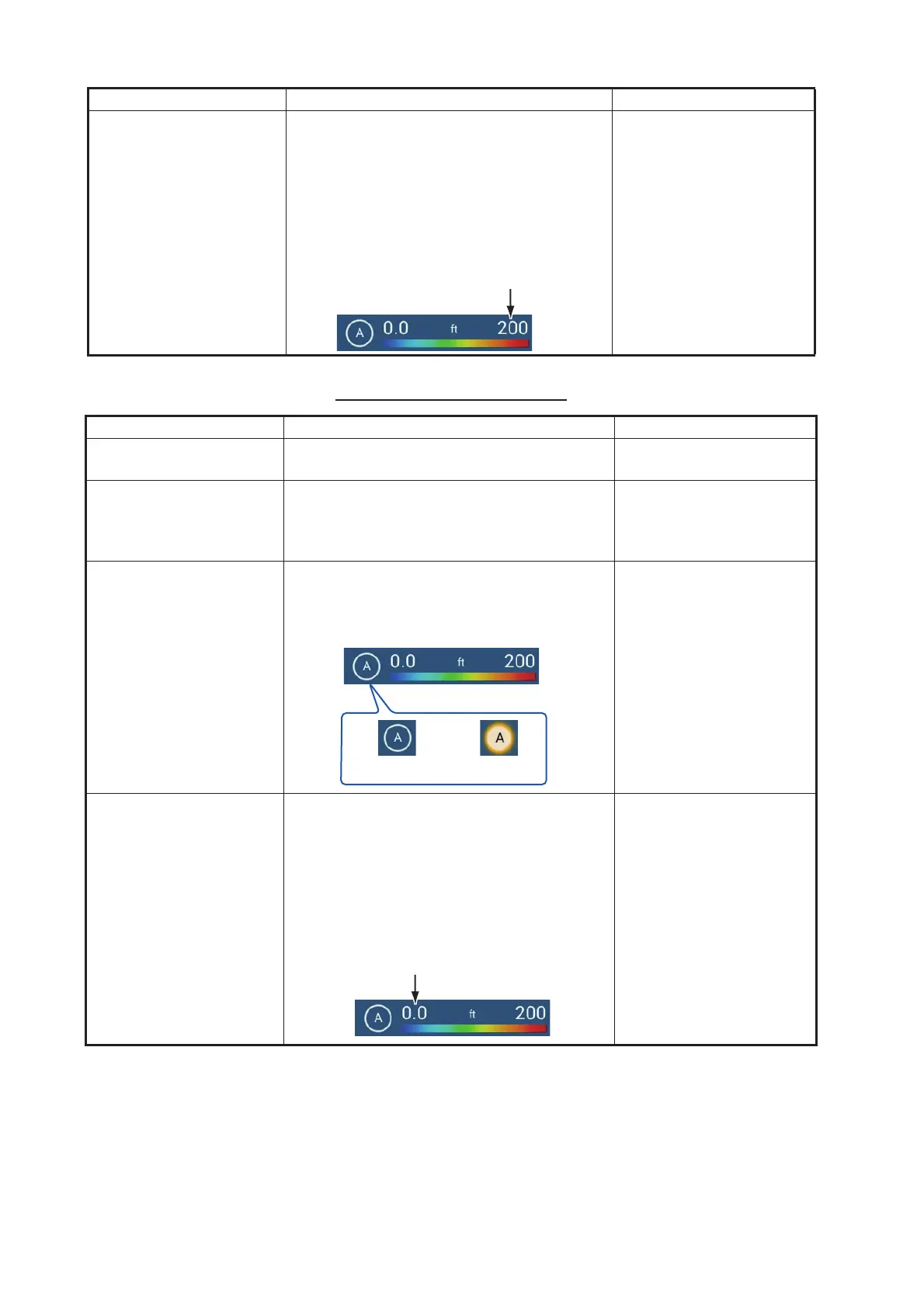

8. MULTI BEAM SONAR DFF-3D
8-14
[Color Mode] selected to [Fish]
[Maximum Value] Use the software keyboard to set the deep-
est depth to use. [Auto Seabed Shading]
must be [OFF] to enter depth.
Alternatively, tap the maximum value indi-
cation on the color bar scale to show the
slider bar. Drag the slider bar to set. Tap
[Done] to finish.
1 to 3937 (ft)
Menu item Description Setting options
[Seabed Monochrome
Color]
For setting single tone. [Gray Hue], [Brown Hue]
[Fish Color] For setting multi tone or single tone. [Classic Hue], [Inverted
Classic Hue], [Red Hue],
[Blue Hue], [Green Hue],
[Yellow Hue]
[Auto Fish Shading] Use automatic or manual fish shading. [OFF] (manual),
[ON] (automatic)
[Minimum Value] Use the software keyboard to set the shal-
lowest depth to use. [Auto Fish Shading]
must be [OFF] to enter depth.
Alternatively, tap the minimum value indica-
tion on the color bar scale to show the slider
bar. Drag the slider bar to set. Tap [Done] to
finish.
0 to 3936 (ft)
Menu item Description Setting options
[Maximum Value]
Deepest depth
Manual mode
Auto mode
Tap [A] to switch between automatic
and manual depth/color shading
scale setting mode.
[Minimum Value]
Shallowest depth
To Next Page
