Cinterion

EHS6 AT Command Set 

19.7 AT^SSPI

 EHS6_ATC_V03.001 15/12/3

Confidential / Released

Page 464 of 513

19.7.1 Selecting SPI Mode

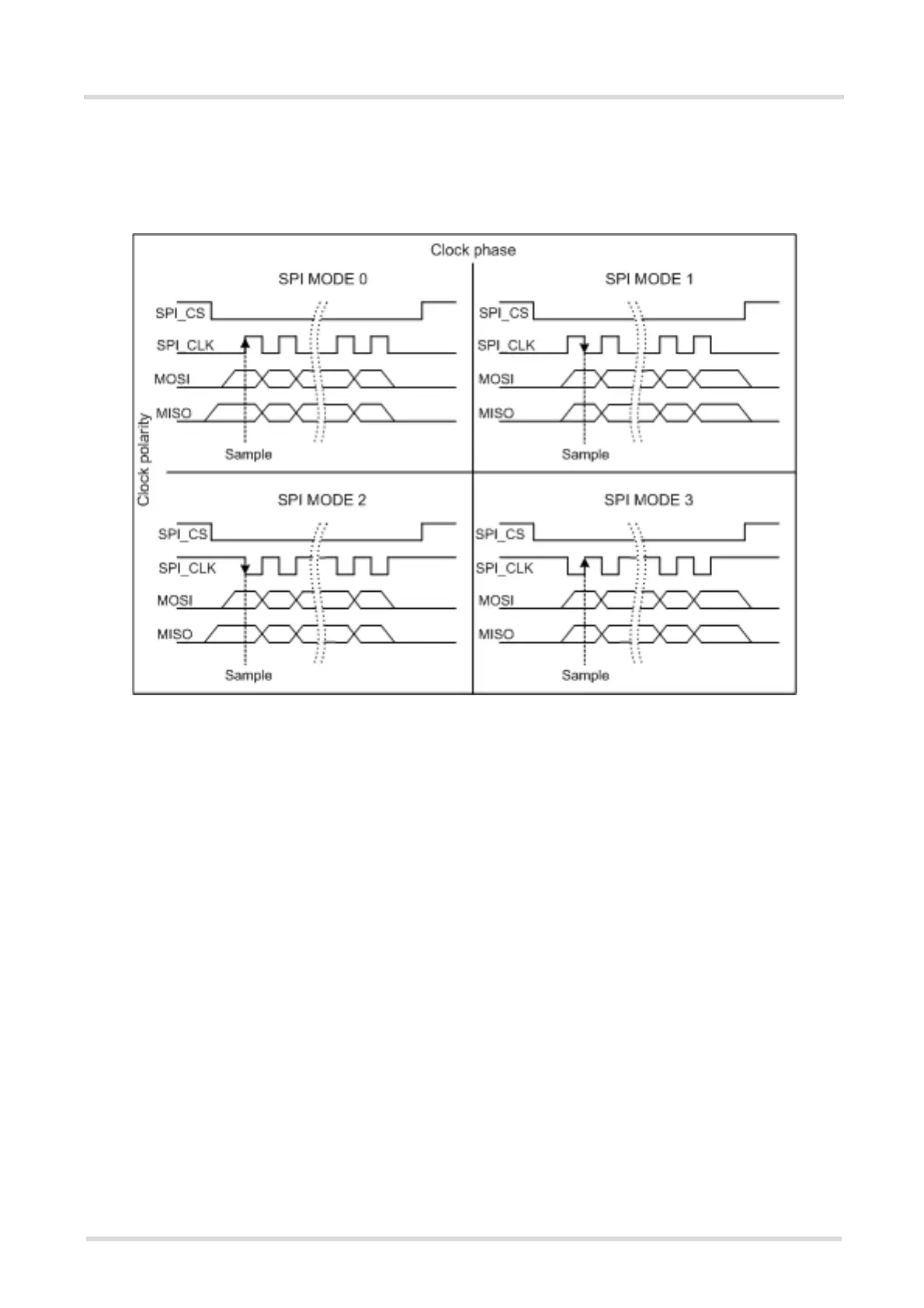

The figure shows the four types of SPI mode selectable by setting the appropriate hexadecimal value within the

parameter <extendedSpiConfiguration>.

Figure 19.1: SPI modes selectable on SPI

Default Chapter3
