3. For Tray 2, make sure that the tray width and length guides are set to the correct paper size being
installed into the tray and that the tray is not over lled above ll mark and over the tab on the tray.

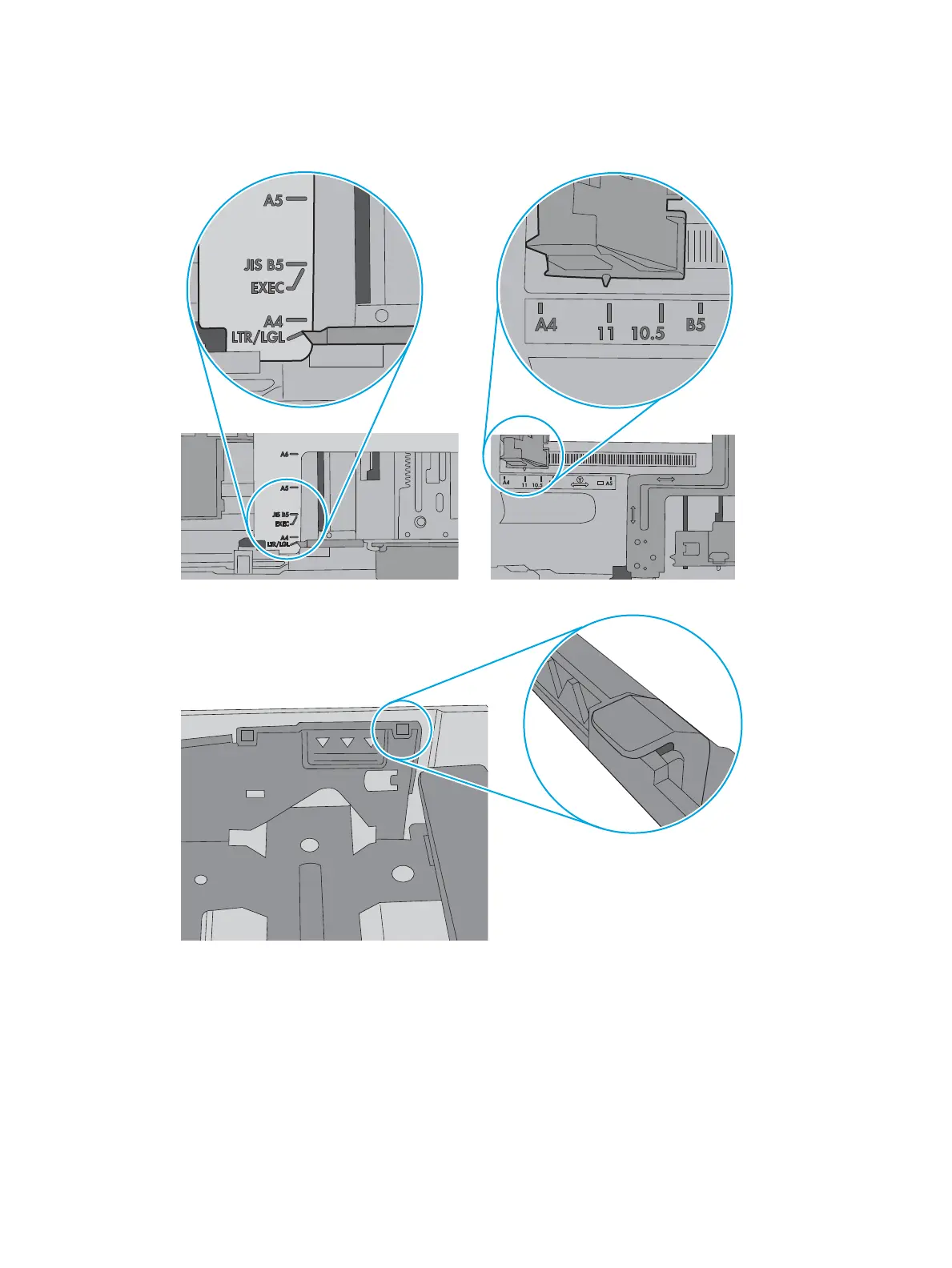

Figure 2-81 Tray 2 Paper guides
Figure 2-82 Tray 2 Paper height guides
4. Check for worn out Tray Feed and Separation rollers, replace if found worn out.
5. Test the top of page sensor (SR6) and the Media width sensors (SR13, SR14). If any of these sensors
does not function correctly, replace the Registration assembly.
6. Test the registration assembly and check connectors J118 and J16 on the DC controller.
7. Replace parts as determined by tests.
284 Chapter 2 Solve problems ENWW
