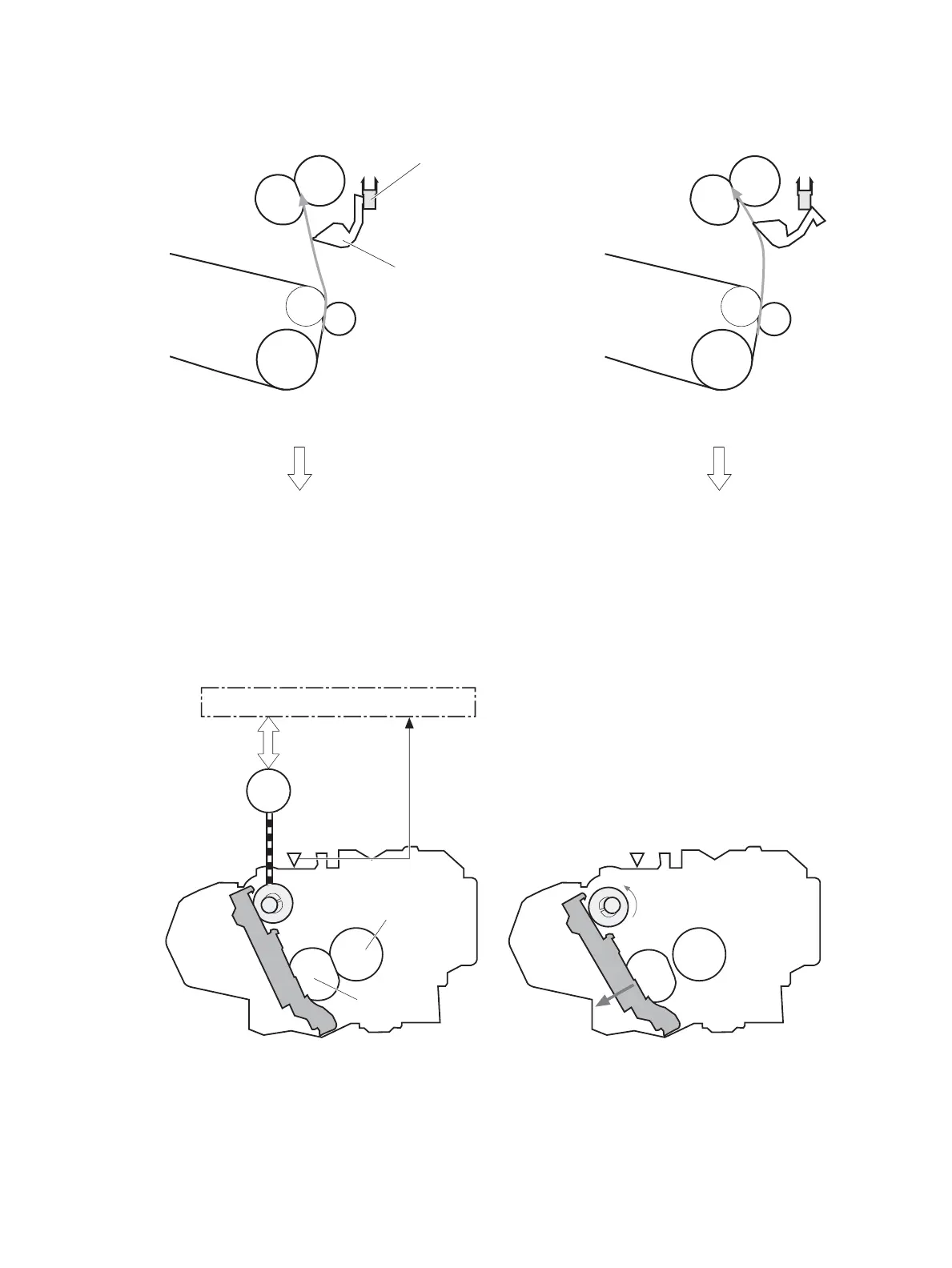

Figure 1-37 Loop control mechanism
The pressure roller rotates faster
than the secondary transfer roller
Loop sensor: OFF
ITB
Loop sensor
Secondary transfer rollerr
Pressure roller
Sensor flag
Loop sensor: ON
The pressure roller rotates slower
than the secondary transfer roller
Pressure roller pressurization and depressurization control
To prevent excessive wear on the pressure roller and help with jam-clearing procedures, the pressure roller
pressurizes only during printing and standby. The DC controller reverses the fuser motor. The fuser motor
rotates the fuser pressure-release cam.
Figure 1-38 Pressure roller pressurization control
SR11 SR11
M4
Pressure roller
DC controller
Fuser pressure release cam
Fuser motor
Pressurized Depressurized
Fuser sleeve
The pressure roller depressurizes under the following conditions:
ENWW Pickup, feed, and delivery system 63
