Table 1-24 Tray 3-5 electrical components (continued)
Component type Abbreviation Component name Replacement part number
SR21 Feed sensor (550-sheet paper feeder) Paper feed assembly
(RM2-5145-000CN)
Trays 3-5 paper pickup
The 550-sheet paper feeder picks up one sheet from the paper-feeder tray and feeds it to the printer.

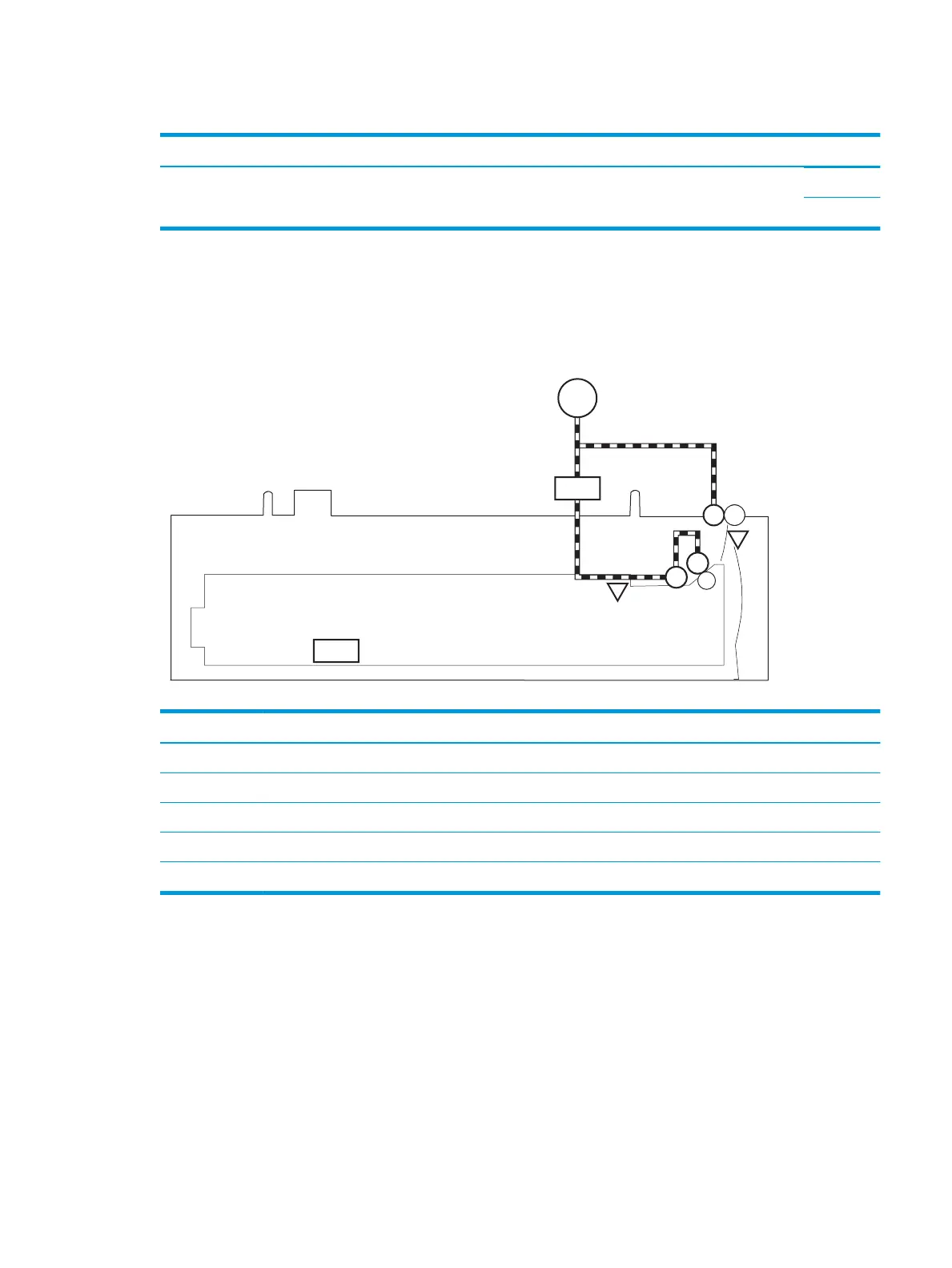

Figure 1-41 Paper pickup and feed operation (550-sheet paper feeder)
Table 1-25 Pickup feed components (1x550-sheet paper feeder)
Abbreviation Component Replacement part number
M20 Feed motor (550-sheet paper feeder) Paper feed assembly (RM2-5145-000CN)
CL20 Tray pickup clutch (550-sheet paper feeder) Part not available
SR20 Tray media-out sensor (550-sheet paper feeder) Paper pick up assembly (RM2-5154-000CN)
SR21 Feed sensor (550-sheet paper feeder) Paper feed assembly (RM2-5145-000CN)
SW21 Tray detection switch (550-sheet paper feeder) Switch button (WC2-5806-000CN)
Trays 3-5 multiple feed prevention
The multiple-feed prevention for the 550-sheet paper feeder is operated in the same way as that of the
printer base.
Trays 3-5 tray presence detection
The presence detection for the 550-sheet paper feeder is the same way as that of the printer base.
