HP LaserJet Enterprise M552 - Page 449

2. Carefully raise Tray 1 up into the printer.

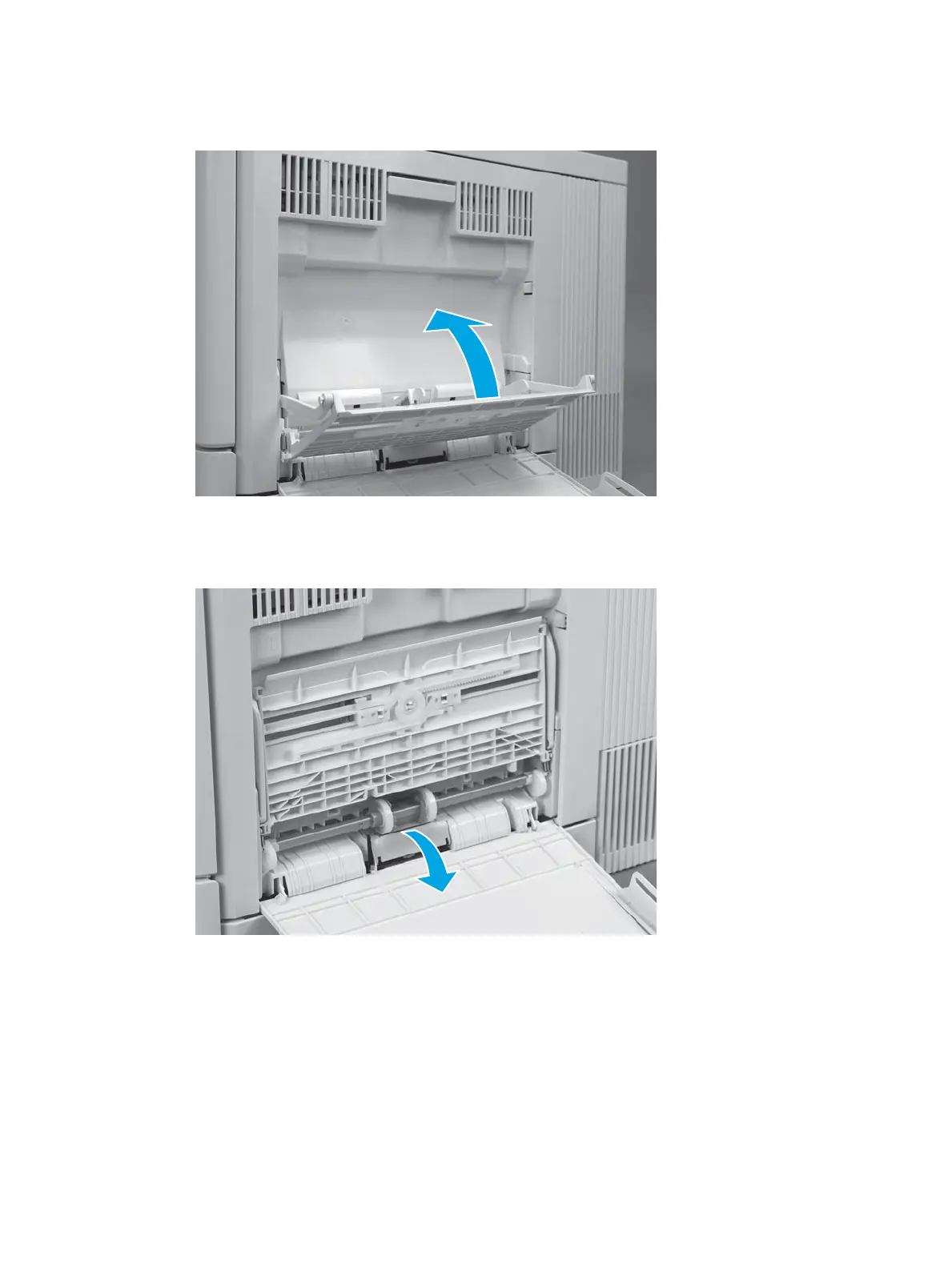

Figure 2-101 Raise Tray 1 up
3. Firmly grasp the corners of the separation roller cover, and then rotate it down and away from the
printer to remove it.
Figure 2-102 Open the roller cover
ENWW Clean the printer 421
