JUNOS Internet Software Network Operations Guide: Hardware
116 ! Understanding the Router Chassis

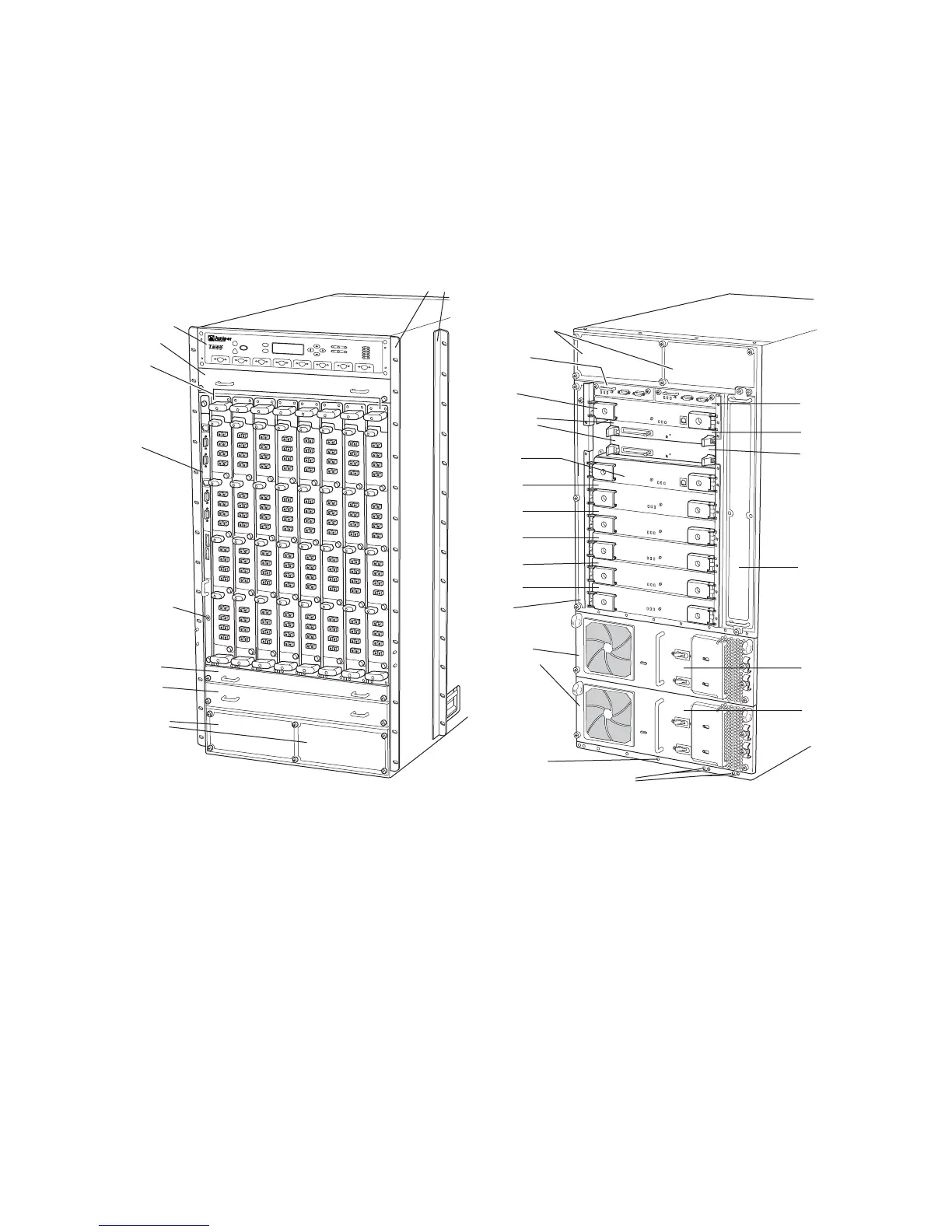

Figure 33 shows the front and rear of the T640 Internet routing node and the
frinstalled components.
Figure 33: T640 Routing Node and Components
See Also
! M5 and M10 Internet Router Overview on page 3
! M7i Internet Router Overview on page 7
! M10i Internet Router Overview on page 11
! M20 Internet Router Overview on page 15
! M40 Internet Router Overview on page 19
! M40e Internet Router Overview on page 23
! M160 Internet Router Overview on page 27
! M320 Internet Router Overview on page 31
! “T320 Internet Router Overview” on page 35
g003256
T640 front T640 rear
Air exhaust
SCG0
CB0
CB1
Routing
Engines
SIB0
SIB1
SIB2
SIB3
SIB4
SCG1
RE1
PEM0
Fan
tray
PEM1
RE0
Air
filter
Power
supplies
ESD point
Grounding points
Craft interface
Rack-mounting ears
Fan tray
FPCs
(with PICs
installed)
Air filter
ESD point
Fan tray
Air intake
CIP
