M5 and M10 Router Cable Management System
The M5 and M10 router cable management system consists of two vertical pieces,
each with a pair of metal hooks draped in a plastic shield, that attach to each side of
the front of the chassis. (See Figure 121.)

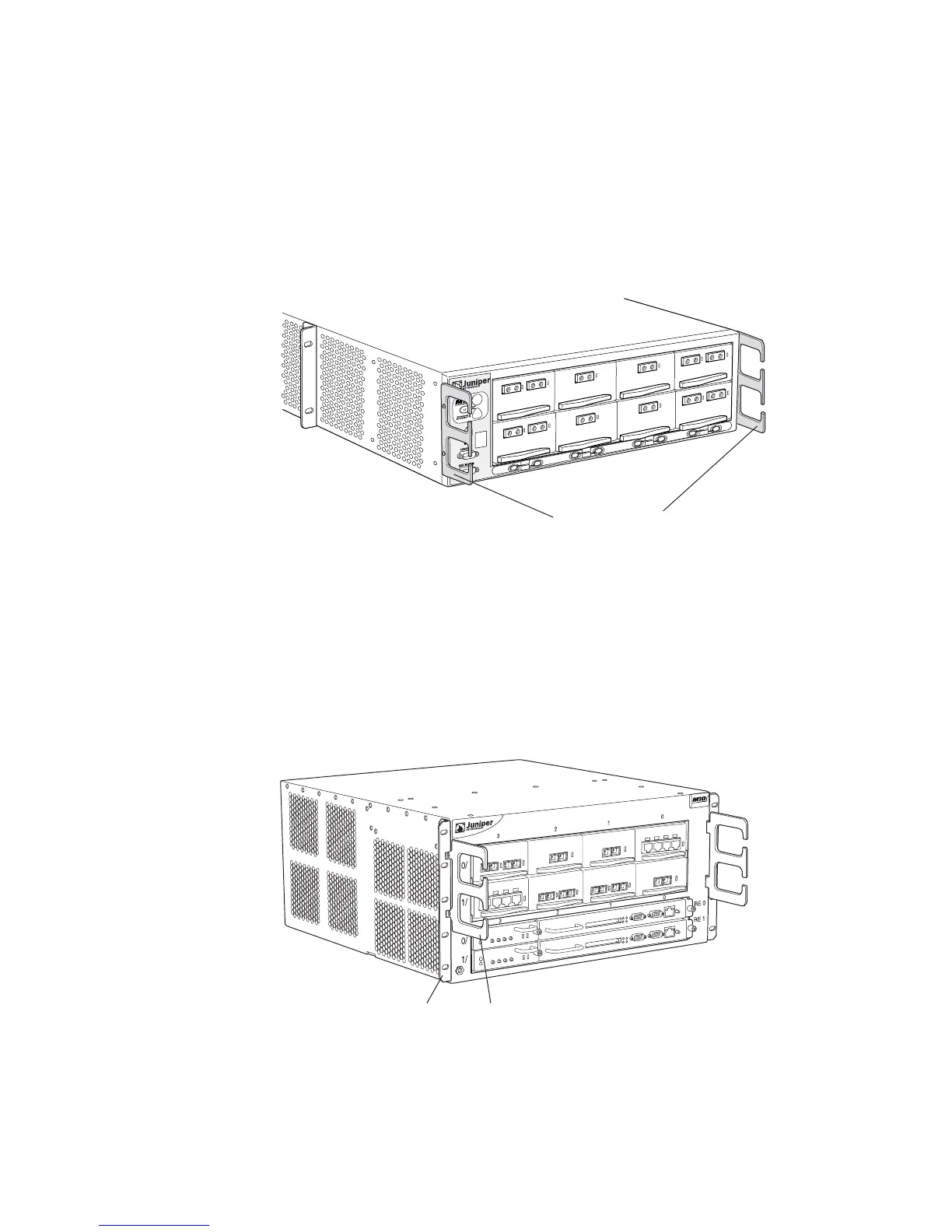

Figure 121: M5 and M10 Router Cable Management System
M10i Router Cable Management System
The M10 router cable management system consists of racks that attach vertically to
each side of the chassis at the front, as shown in Figure 122. Pass PIC cables
through the slots in the racks to keep the cables organized and securely in place,
and to avoid bending optical cables beyond the proper bend radius. The cable
management system evenly distributes the weight of a cable, so that it is not
subjected to undue stress at the connector.
Figure 122: M10i Router Cable Management System
1341
Cable management
system
g003335
Mounting bracket Cable manager
