Verifying FPC Failure ! 175
Chapter 15: Monitoring FPCs

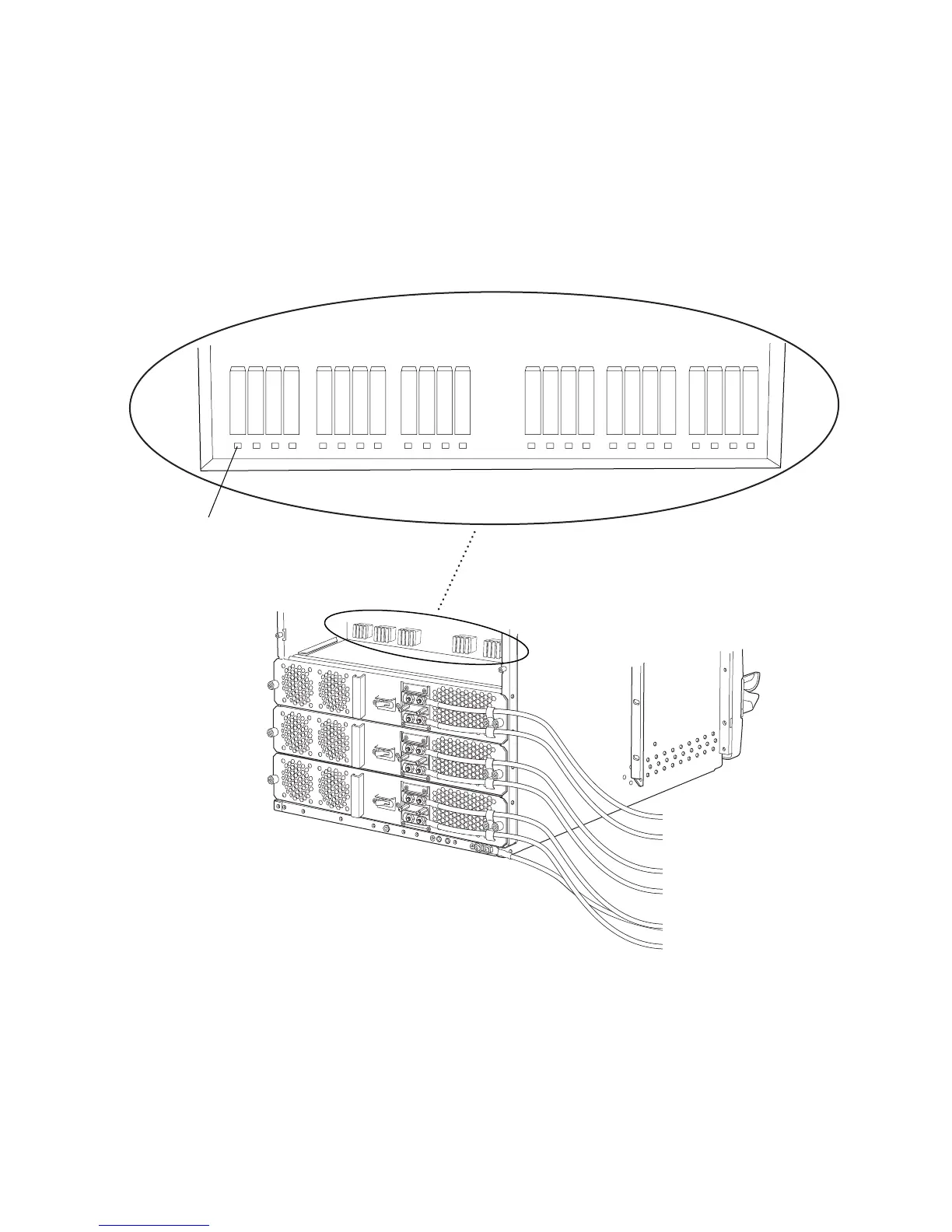

Figure 58 shows the location of the M320 fuses in the rear of the midplane for the
FPC. (The labels shown in the figure do not appear on the actual fuses—the clear
cover on every fuse reads BUSS GMT-X—and might not match the labels on the
midplane. Ignore the labels on the midplane.)
Figure 58: Component Fuses in the M320 Router Midplane
Step 4: Take the FPC Offline
The FPCs are hot-insertable and hot-removable. When you remove an FPC, the
router continues to function, although the PIC interfaces installed on the FPC no
longer function.
Action To take an FPC offline, press the offline button for approximately 3 seconds, and
follow the instructions in the appropriate router hardware guide.
g003478
J412 J410
ABCD
J414
ABCD
J415
ABCD
J416
ABCD
CB0
SIB3
FPC3 SIB2
FPC5
SPARE
SPARE
SPARE
SPARE SPARE FPC4
FPC7 SIB0 FPC6
SIB1 FPC2
J411
ABCD ABCD
CB1
FPC1 SPARE
FPC0
5A
15A
5A
SPARE
15A
SPARE
15A 15A 15A 15A 15A
5A
15A 15A
5A 5A 5A 5A 5A 5A
15A 15A
15A
Amber LED
SPARE
5A
SPARE
5A
