134 ! Understanding the Routing Engine
M320 Router Routing Engine Location

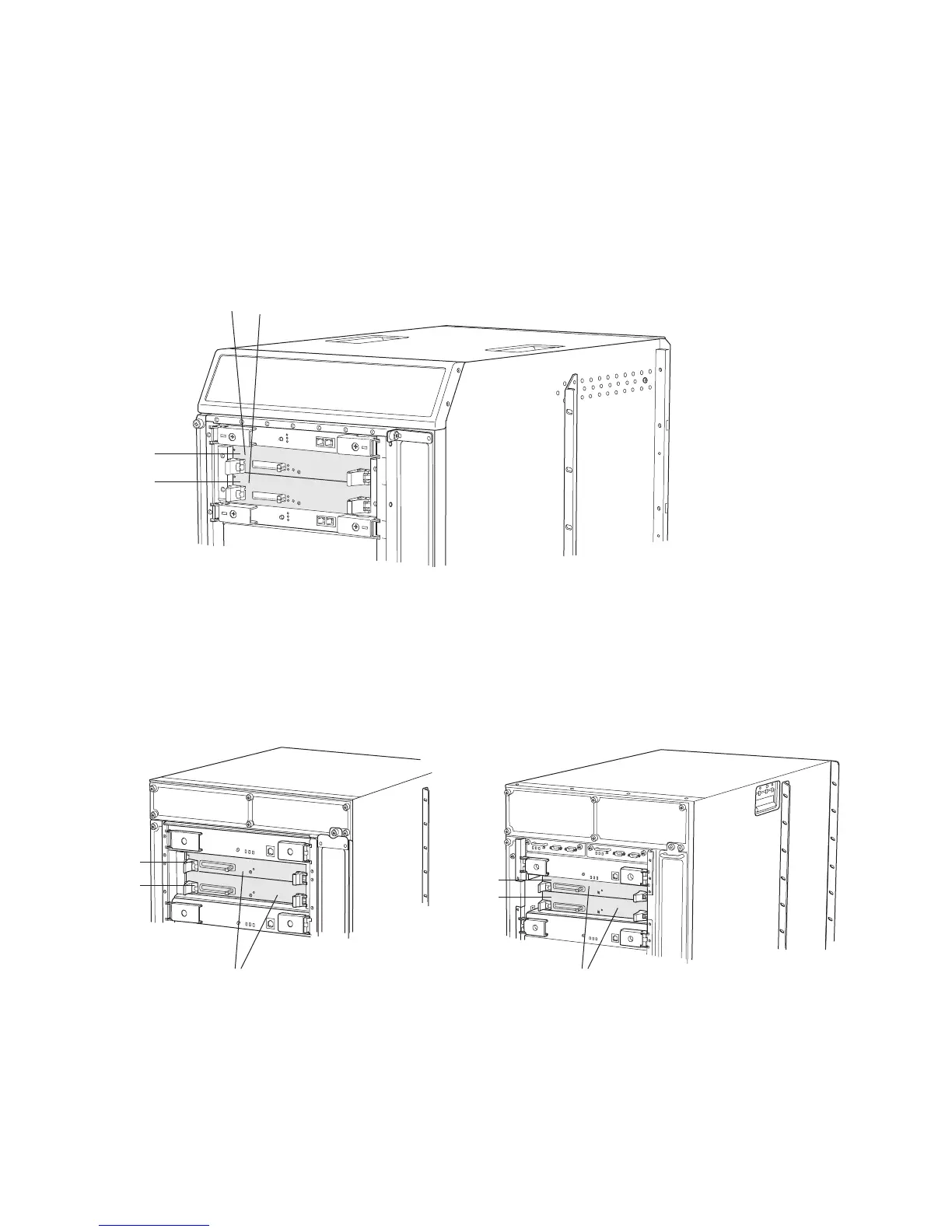

Figure 42 show the Routing Engine location on the M320 Internet router.
Figure 42: M320 Router Routing Engine Location
T320 Router and T640 Routing Node Routing Engine Location
Figure 43 shows the Routing Engine location on the T320 router and T640 routing
node.
Figure 43: T320 Router and T640 Routing Node Routing Engine Location
A
M
A
S
T
E
R
F
A
I
L
O
K
A
B
B
M
A
S
T
E
R
F
A
I
L
O
K
Routing Engines
RE0
RE1
M320 router rear
C
B
0
R
E
0
R
E
1
C
B
1
C
B
-M
CB
-M
g002230
Routing Engines Routing Engines
RE0
RE1
T320 router rear
T640 routing node rear
g003257
RE0
RE1
