Checking the Power Supply Cables ! 229
Chapter 18: Monitoring Power Supplies
T640 Routing Node Power Supplies

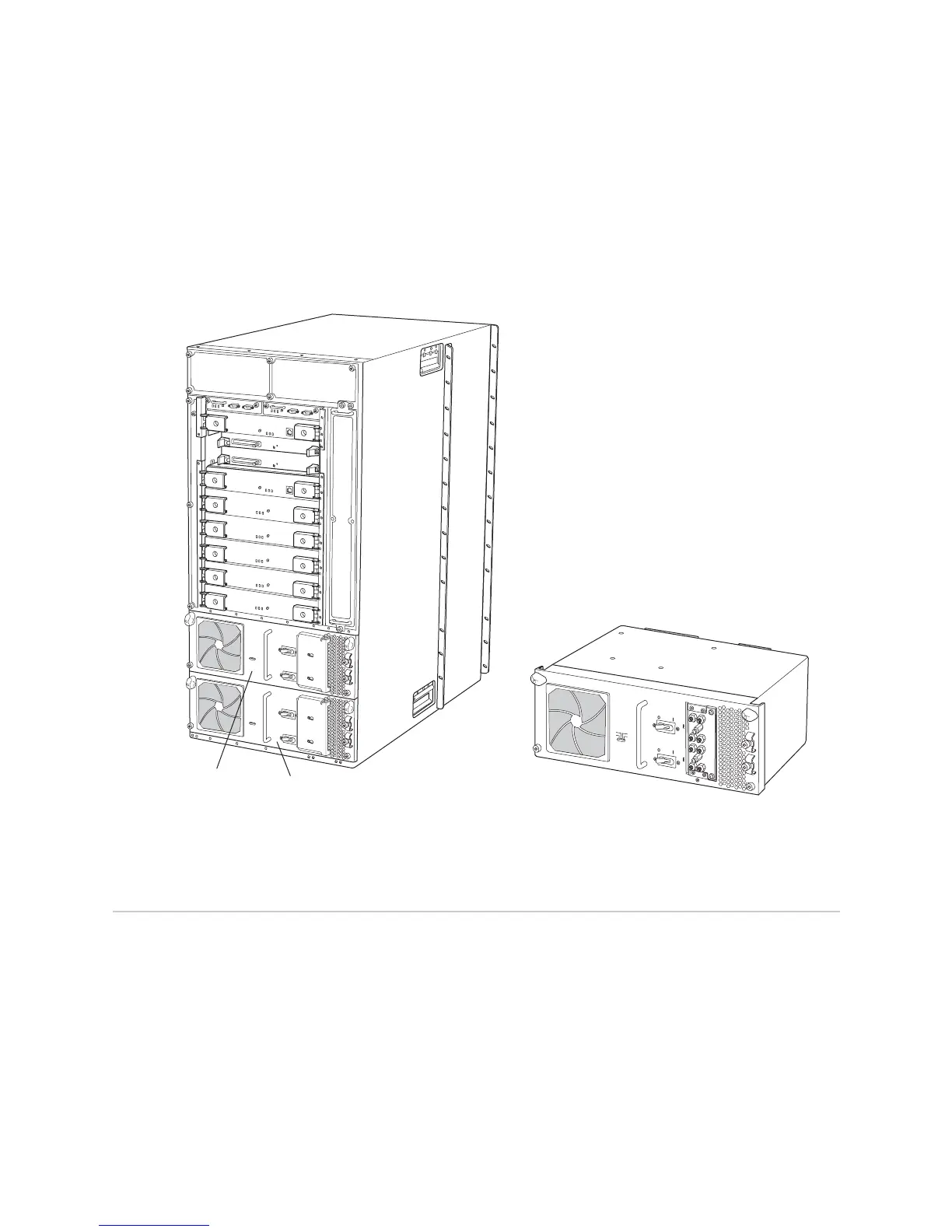

Figure 94 shows the T640 routing node power supplies and where they are installed
in the chassis.
Figure 94: T640 Routing Node Power Supplies
See Also
! Monitoring Redundant Power Supplies on page 507
Checking the Power Supply Cables
Action To check the power supply cables, follow these steps:
1. Verify that the power cable or power cord from the power source to the router is
not damaged. If the insulation is cracked or broken, immediately replace the
cord or cable.
2. Make sure that the power and ground cables on each DC power supply are
arranged so that they do not obstruct access to the other power supply or to the
Routing Engine.
3. Periodically inspect the site to ensure that the cables connected to the power
supply are securely in place and are properly insulated.
Power supply
PEM 0
T640 router rear
DC power supply
Power supply
PEM 1
INPUT 1
INPUT 0
-48V -48VRETURN
RETURN
OVER TEMP
CB ON
DC OK
CB TRIP
g002107
