Understanding the Cooling System ! 257
Chapter 19: Monitoring the Cooling System

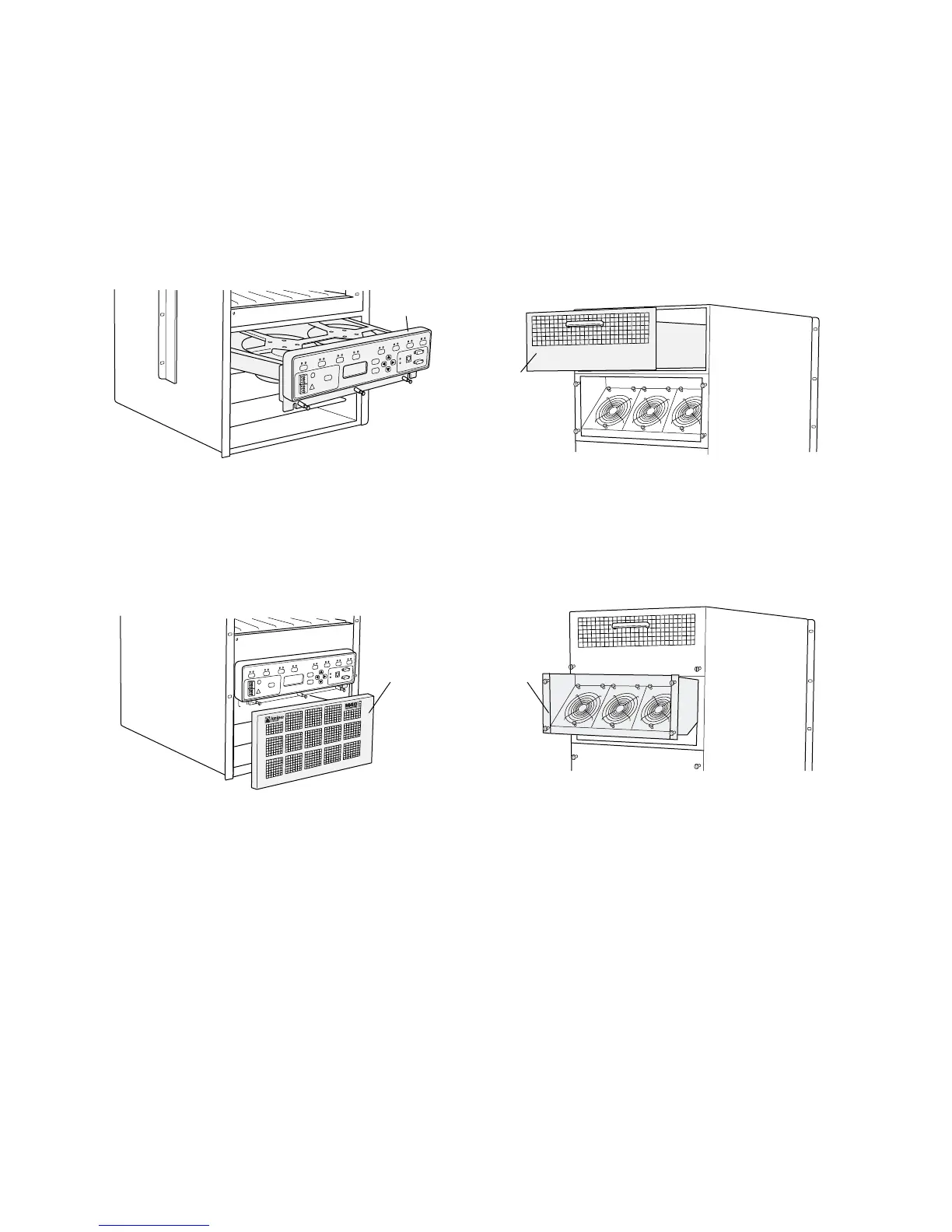

Figure 110 shows the M40 router cooling system impeller trays.
Figure 110: M40 Router Impeller Trays
Figure 111 shows the M40 router air filter and fan tray.
Figure 111: M40 Router Air Filter and Fan Tray
1773
Lower
impeller tray
Upper
impeller tray
Front Rear
1772
Air filter
(behind cover)
Rear
fan tray
R
Front Rear
