LMI Technologies Gocator 2300 Series User Manual

Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 179

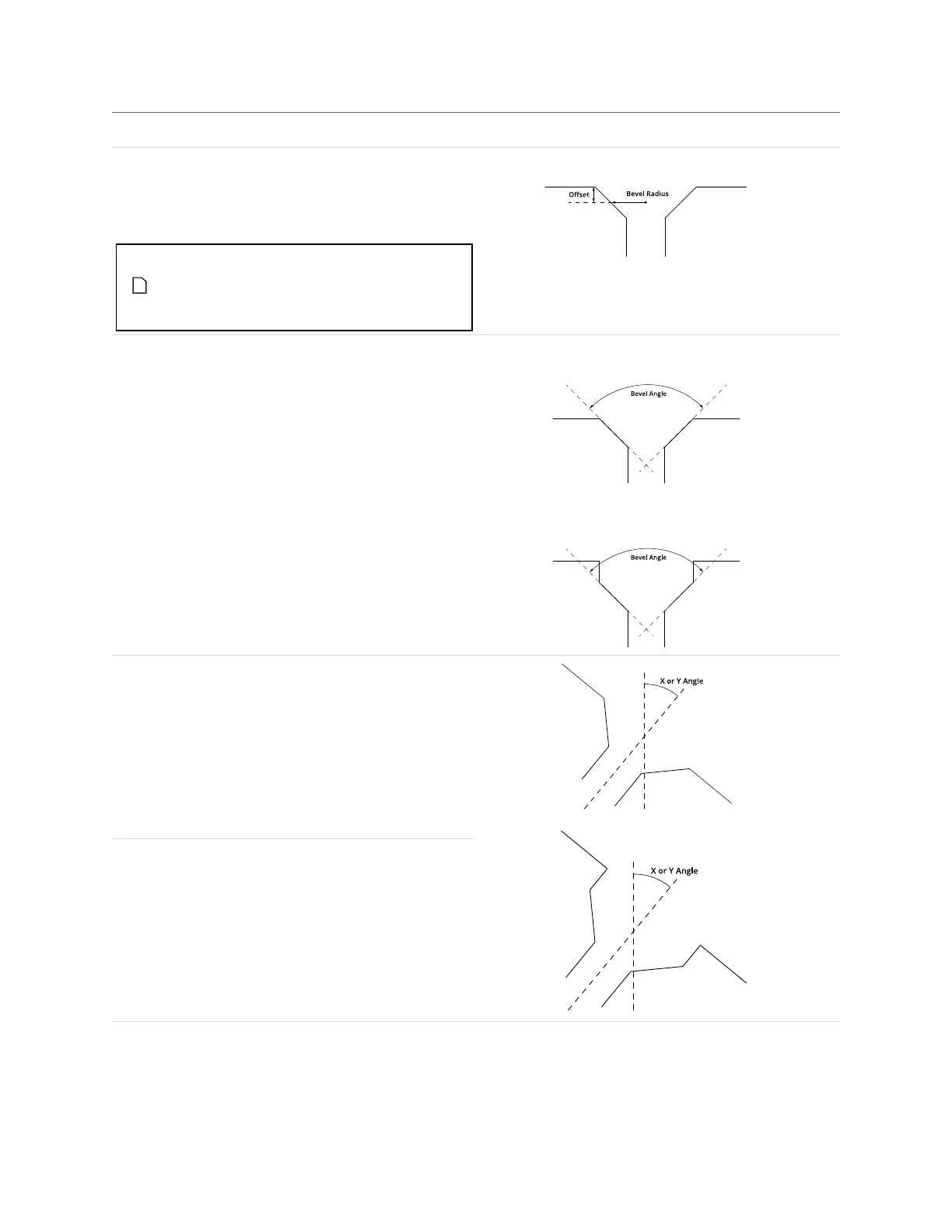

Measurement Illustration
Bevel Radius
Determines the radius at a user-defined offset (Offset
setting)relative to the surface that the countersunk
hole is on.
To convert the radius to a diameter,
set the Scale setting in the Output
panel (displayed after expanding the
Filters section) to 2.
Bevel Angle
Determines the angle of the hole's bevel.
X Angle
Determines the angle the hole relative to the Xaxis.
The measurement assumes that the hole is
perpendicular to the surface, even though the surface
itself is tilted.
Y Angle
Determines the angle of the hole relative to the Y axis.
The measurement assumes that the hole is
perpendicular to the surface, even though the surface
itself is tilted.
Counterbore Depth
This measurement is reserved for future use.
