6.14Overflowinmulti-turnrange
With this function the multi-turn range can be shifted in order to avoid a possible
overflow. The function is available for encoder channels 1 and 3.
Example
If a portion of the travel distance is to the left of the threshold (MT Base), it is
appended
to the end of the travel range (to the right of the 2048) via parameter
P547[0]
-
ENC_CH1_MTBase for encoder channel 1 and P584[0] - ENC_CH3_ for
encoder channel 3 (unit: increments).
For more information, see Section "Main parameters for encoder channel Ch1"
on page 57 and Section "Sin/Cos incremental encoder with absolute value
interface" on page 62.

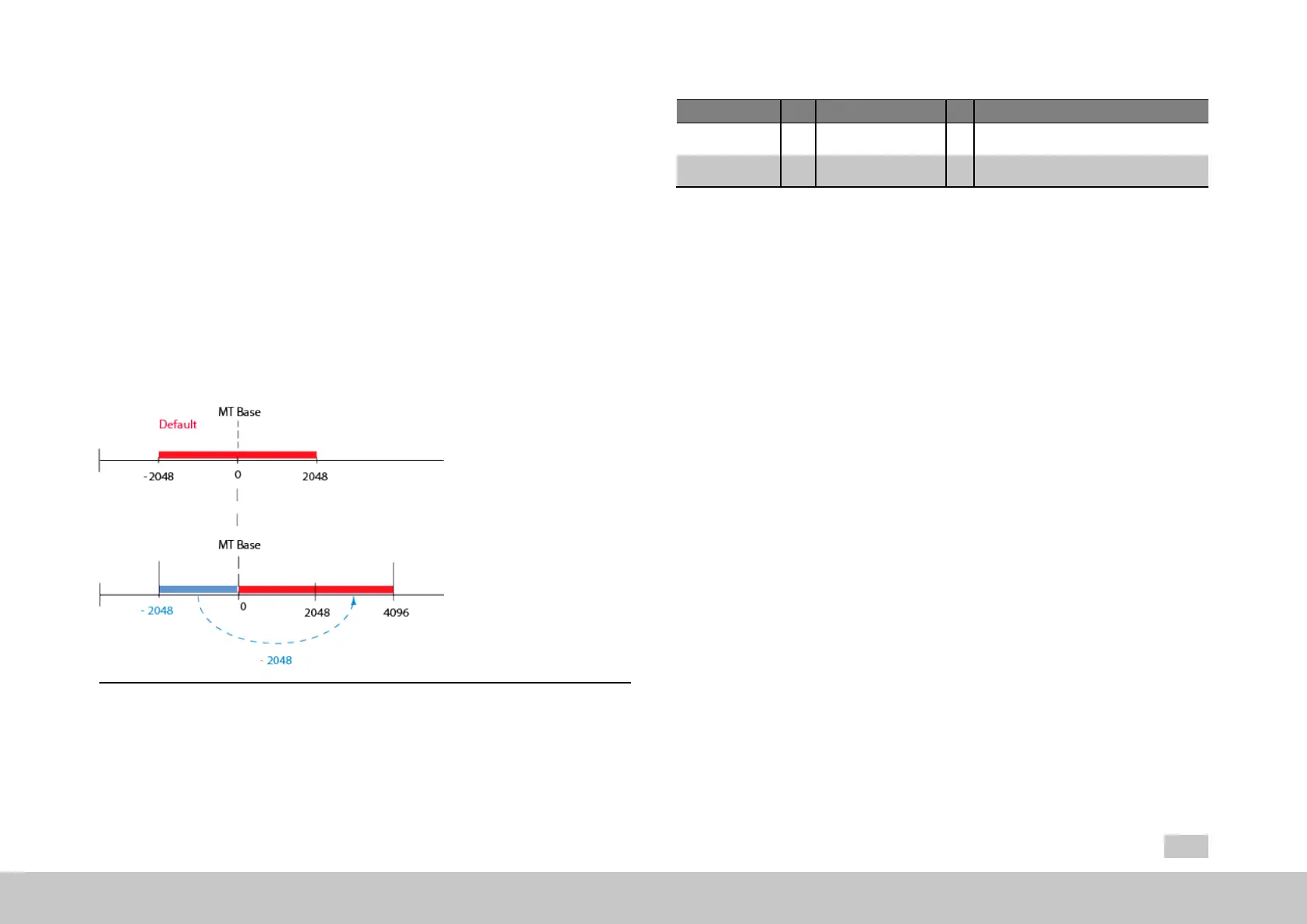

Fig. 6.15: Multi-turn range shifting
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
103
6 Encoder
P No. Index Name Unit Description
547 0 ENC_CH1_MTBase Definitionofpointofdiscontinuityinmulti-turn
range
584 0 ENC_CH3_MTBase Definitionofpointofdiscontinuityinmulti-turn
range
Table 6.38: Parameters for shifting the multi-turn overflow
