 Thezeropointcorrespondstothefirstzeropulseafterthereferencemark’s
fallingedge.
 Reversalofdirectionofmovementafteractivereferencemark.Thezeropoint
correspondstothefirstzeropulseafterthefallingedge.

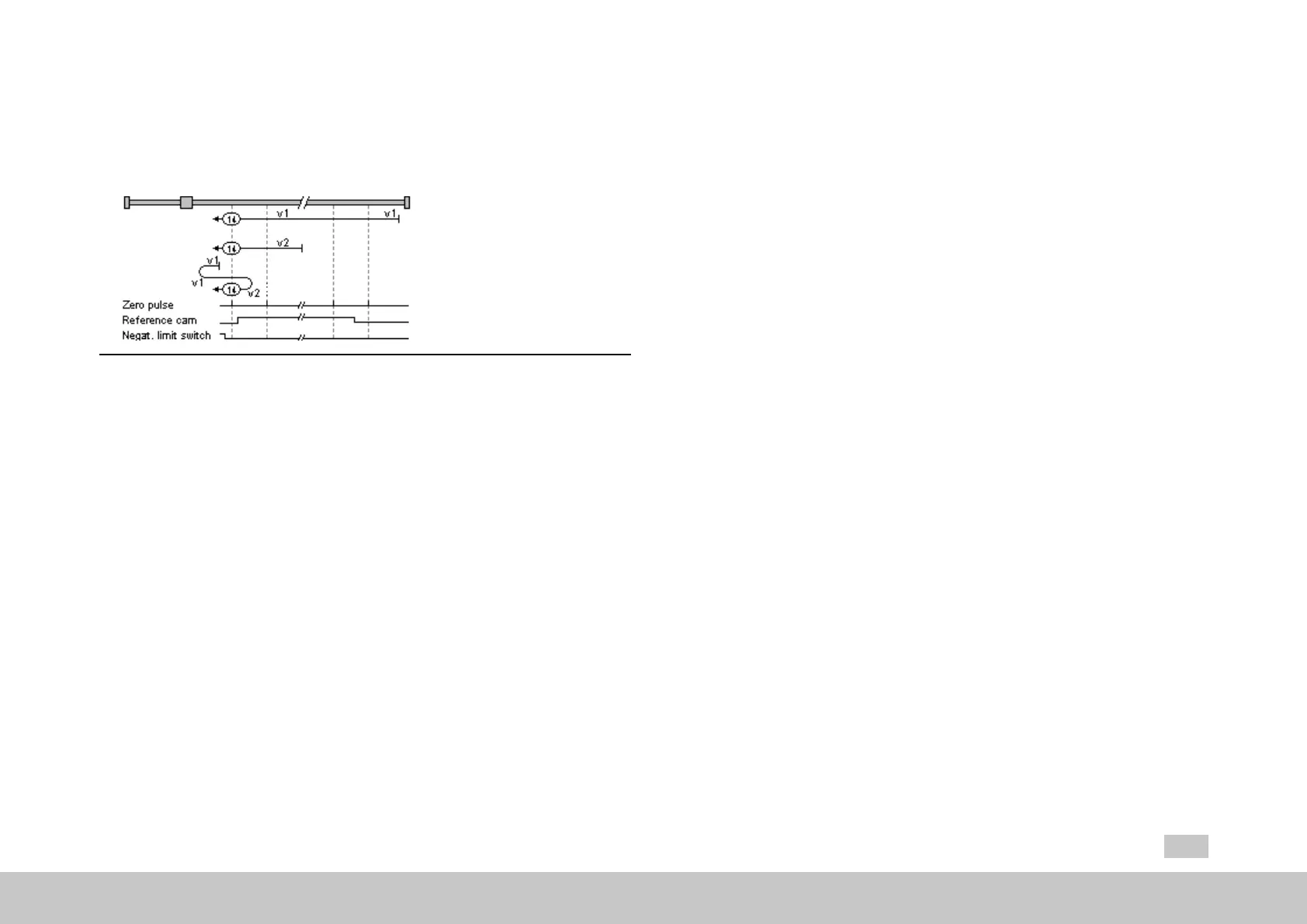

Fig. 8.58: Zero point corresponds to first zero pulse after...
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
200
8 Motion profile
8.5.12Methods(15)and(16)
These two homing methods are not defined.
