ID Index Name Unit Description
451 0 MOT_Name Nameofmotorparameterset
457 0 MOT_CNom A Motorratedcurrent
491 0 MOT_CalcLin2Rot Calculatefromlineartorotarymotordata
492 0 MOT_MagnetPitch mm Widthofonemotorpolepair
493 0 MOT_SpeedMax m/s Motorratedspeed
494 0 MOT_ForceNom N Motorratedforce
496 0 MOT_MassMotor kg Massofmotorslide
497 0 MOT_MassSum kg Totalmass,movedbythemotor
498 0 MOT_EncoderPeriod um Periodoflinesignals
Table 5.3: “Linear synchronous motor” parameters
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
36
5 Motor
5.3.1Linear synchronous motor electronic data

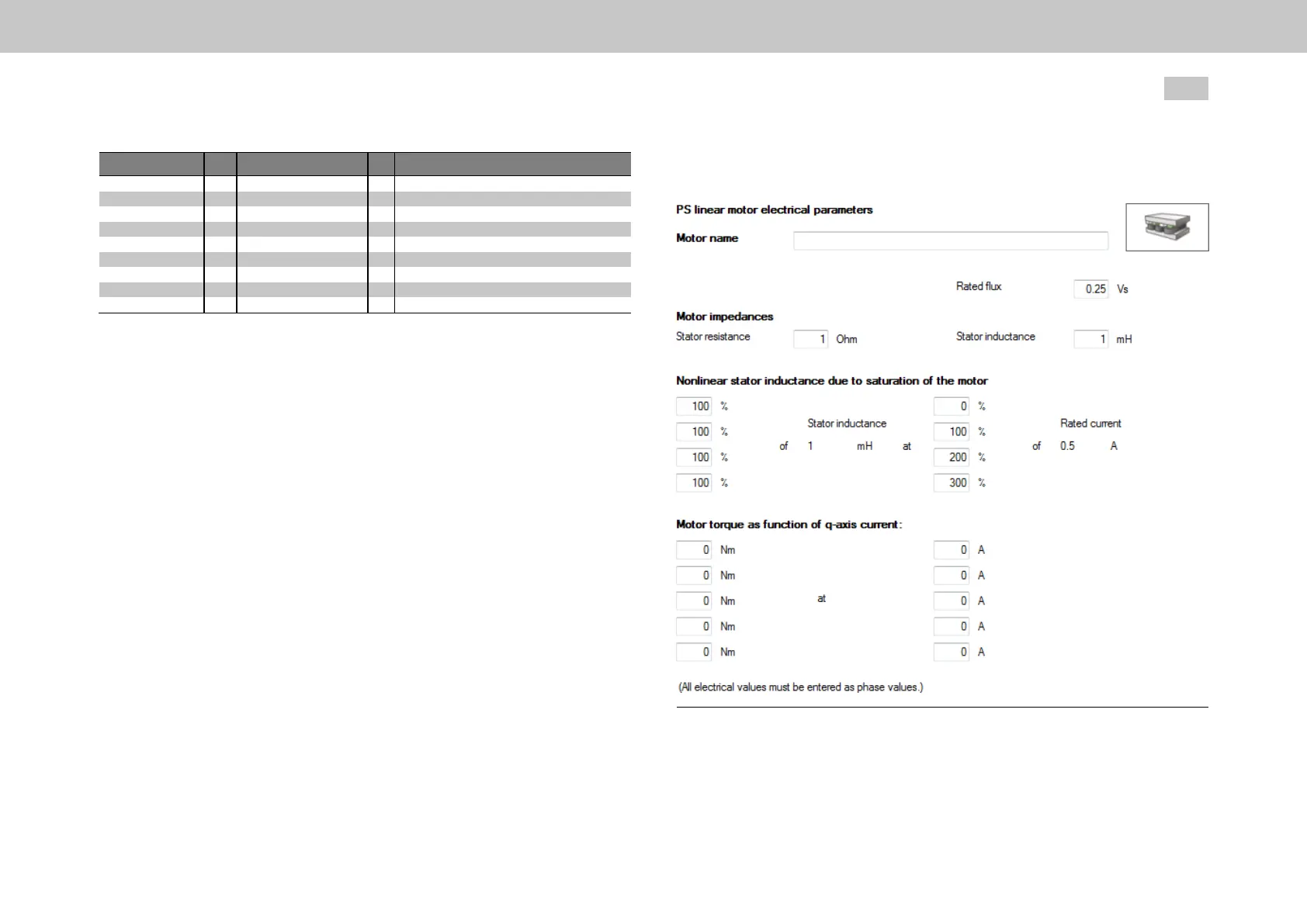

Fig. 5.5: “Linear synchronous motor electronic data" dialog box
