8.8Analogchannel(ISA00andISA01)

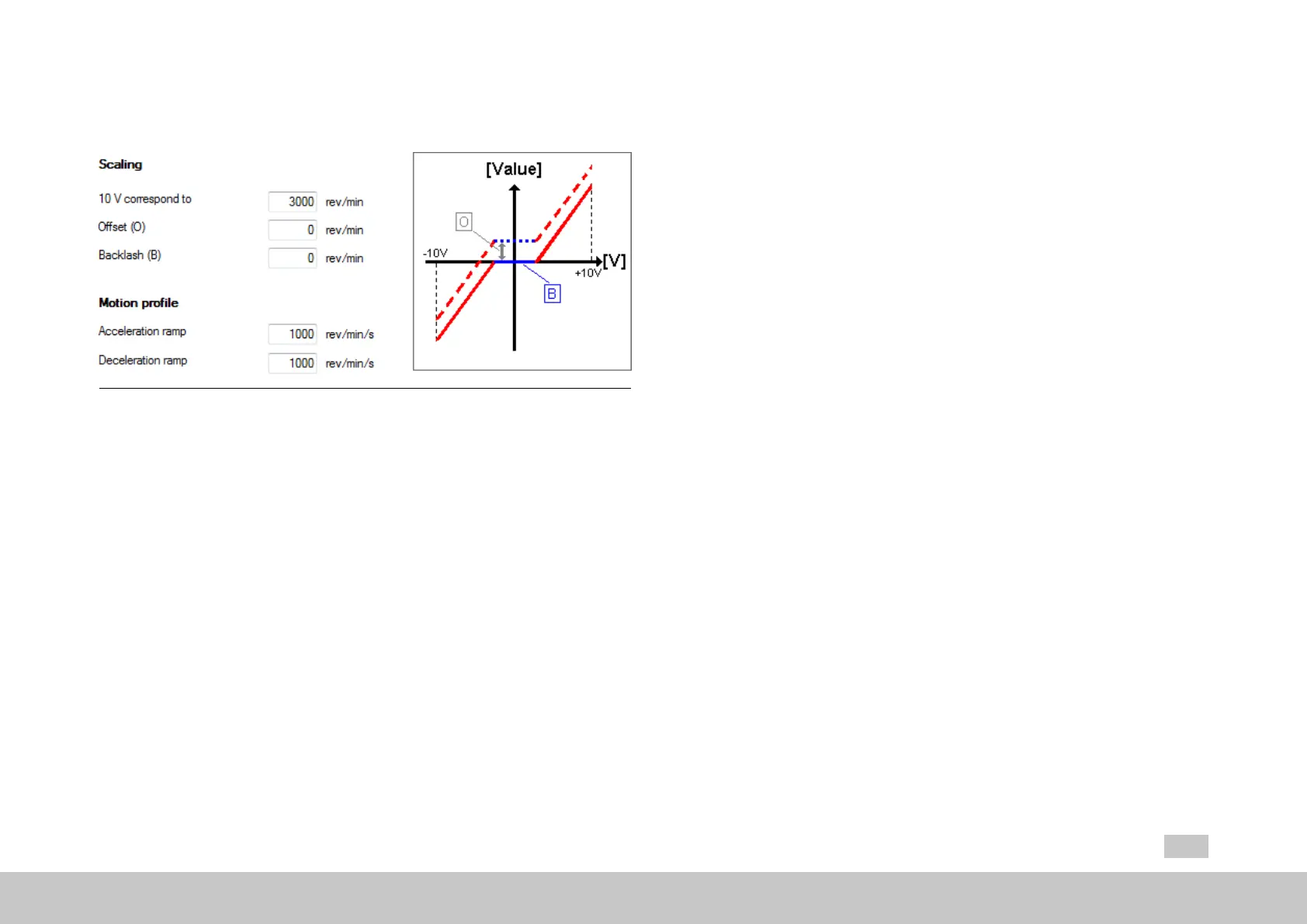

Fig. 8.68: Dialog box “Analog channel”
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
212
8 Motion profile
Two standard analog inputs (ISA00, ISA01) are available. These inputs can be
configured...
 withnegativevaluesforanalogsetpointsettings
 withpositivevaluesfordigitalsetpointprocessing
in the “Function selection of analog inputs” screen (see Section "Analog inputs" on
page 243) P109[0] - MPRO_INPUT_FS_ISA00 and P110[0] - MPRO_INPUT_
FS_ISA01
. By using
the "REV(-2) = Analog setpoint"
setting, an analog input voltage of
±10V can be processed as a setpoint.
10 V correspond to
This parameter (P173 - MPRO_ANA0_Scale for ISA00, P183 - MPRO_ANA1_Scale
for ISA01) is used to define which speed / which torque / which position corresponds
to the maximum analog value. Depending on the control mode being used (
see
Section
"Basic
settings"
on
page
107), the value will be stored in parameter index [0]
(torque control), [1] (speed control) or [2] (position control).
Offset (O)
This parameter (P174 - MPRO_ANA0_SOffset for ISA00, P184 - MPRO_ANA1_
SOffset for ISA01) compensates for component variations and is used for offset
compensation purposes. Depending on the control mode being used (see Section
"Basic settings" on page 107), the value will be stored in parameter index [0] (torque
control), [1] (speed control) or [2] (position control).
Backlash (B)
This parameter (P175 - MPRO_ANA0_SThreshold for ISA00, P185 - MPRO_
ANA1_SThreshold for
ISA01)
can
suppress
axis
motion close to the standstill (stop)
position. Depending on the control mode being used (see Section "Basic settings" on
page 107), the value will be stored in parameter index [0] (torque control), [1] (speed
control) or [2] (position control).
