8.2.1Standard/CiA402

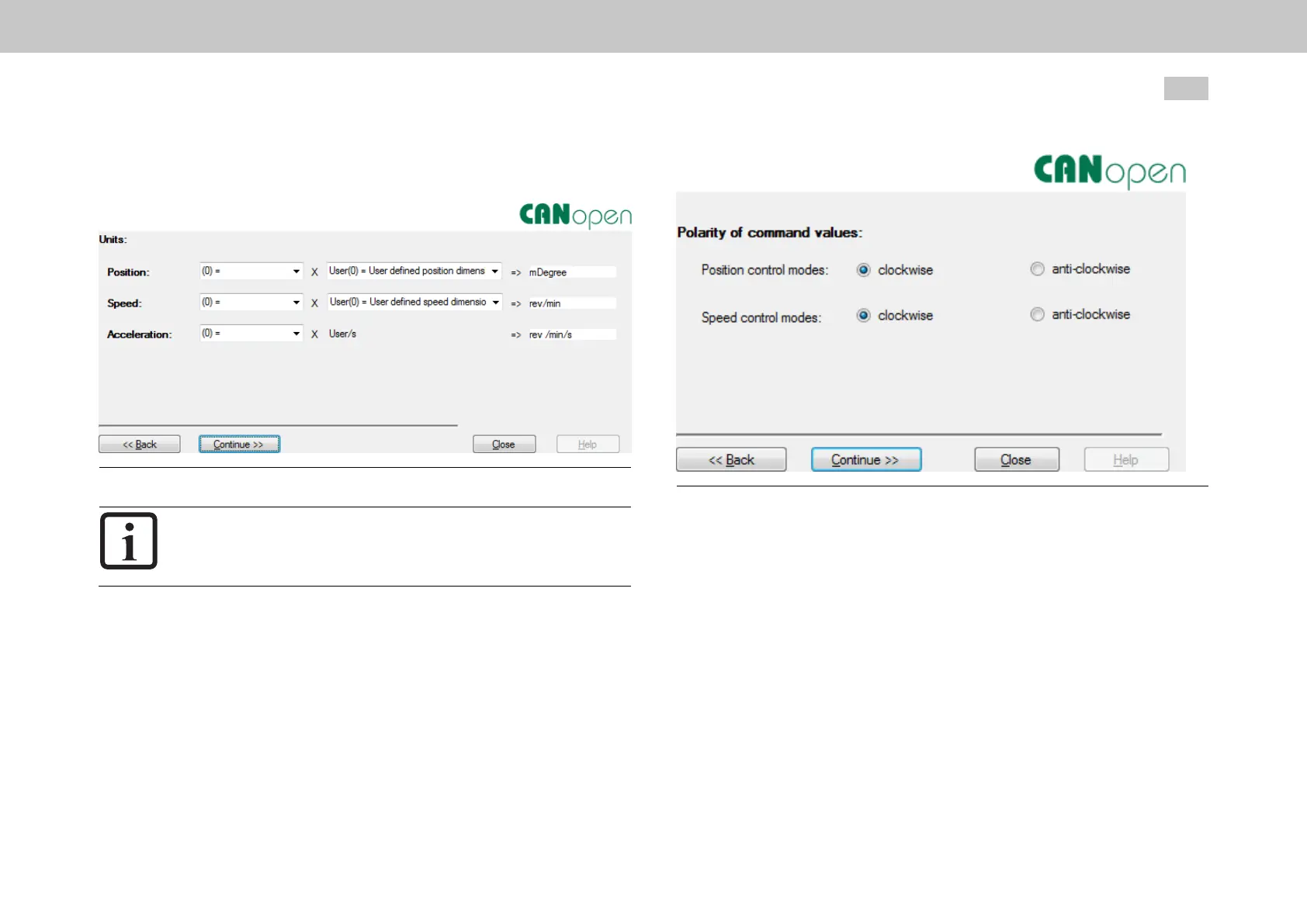

Fig. 8.3: “Standardization profile - Standard/CiA 402 - Units” dialog box
NOTE
 Thescalingisenteredusingexponentsyntax.
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
163
8 Motion profile
Fig. 8.4: “Standardization profile - Standard/CiA 402 - Direction of rotation” dialog box
Referred to the motor, the positive direction is clockwise as seen when looking at the
motor shaft (A-side bearing plate).
