Moog MSD Servo Drive Series User Manual

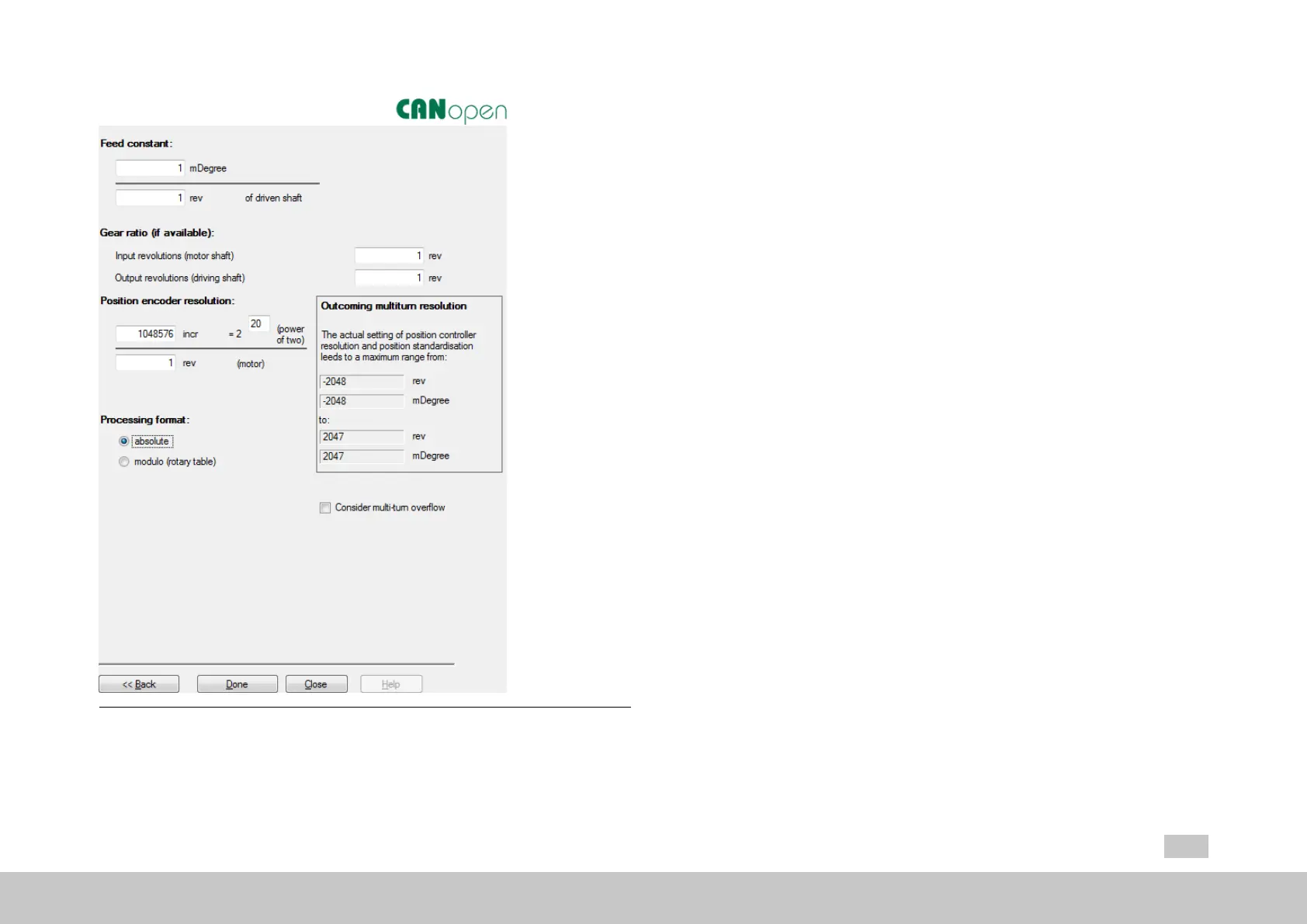

Fig. 8.5: “Standardization profile - Standard/CiA 402 -
Feed/Gearing/Resolution/Process format” dialog box
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
164
8 Motion profile
Feed constant
The path travelled is proportionate to one motor revolution or, when using a gear
unit, to the output-side revolution.
Gear ratio (if available)
Ratio of one motor revolution before the gearing to the number of revolutions on the
gear output side. The values for the gear ratio are entered in the dialog box as
integer fractions.
Position controller single-turn resolution
The single-turn resolution of the position controller can be adapted variably to the
application. A total of 32 bits are available. In the default setting, 20 of the bits are
used for the single-turn position.
