8 Motion profile
8.2Scaling/units
As soon as you select “Standardization / units”, the Standardization Wizard used to
select a standardization profile will appear.

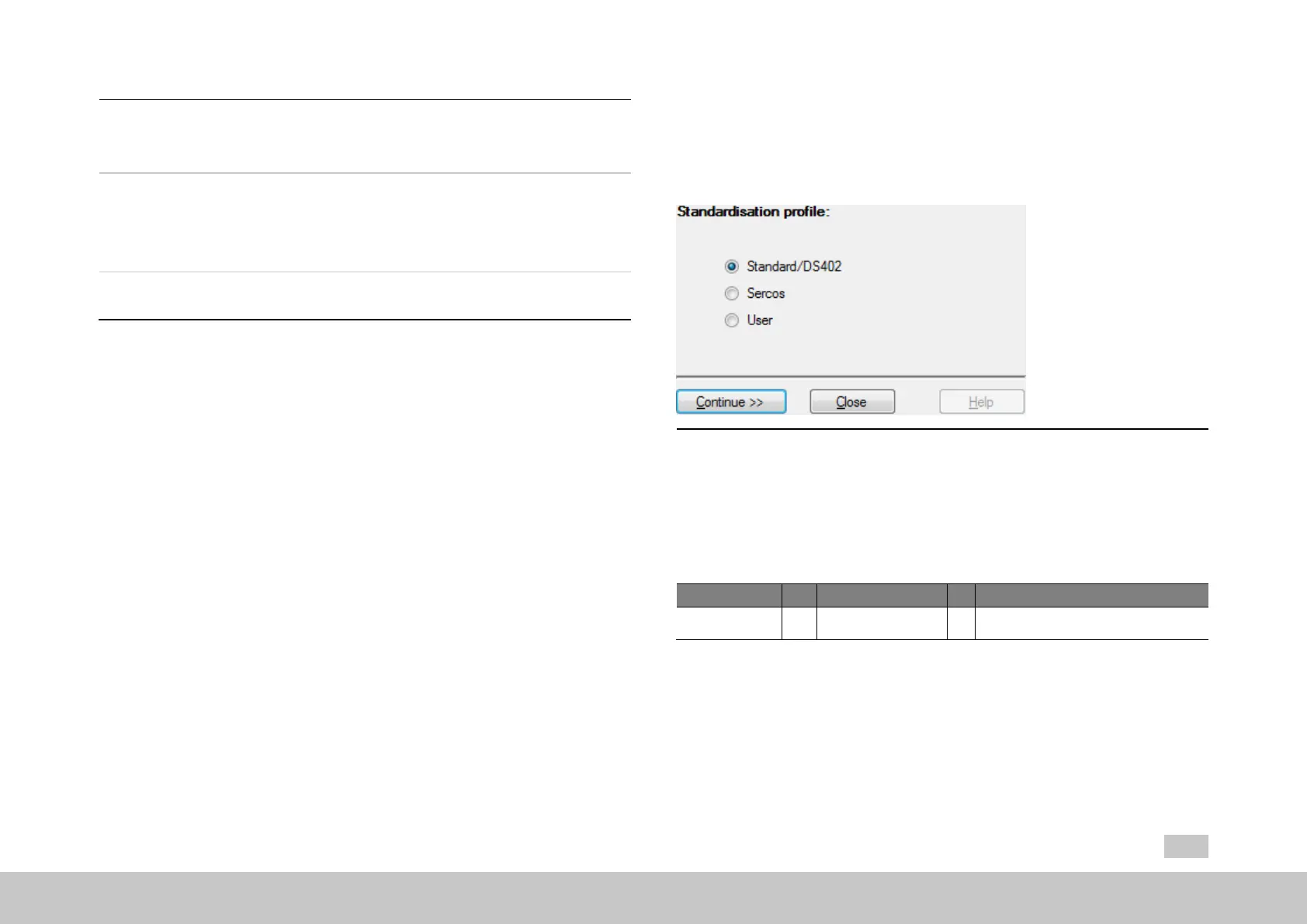

Fig. 8.2: “Standardization profile selection” screen
The wizard helps ensure that the application’s physical data will match the servo
drive data. If you are using the "Standard/ CiA 402" or "SERCOS" profile, the wizard
will fully support the scaling definition process. If you use “custom” scaling instead,
the wizard will close, as this type of configuration can only be set up directly in the
parameter editor.
ID Index Name Unit Description
283 0 MPRO_FG_Type Factorgroup:Typeselection;DS402(0),Sercos
(1),USER(2)
Table 8.1: Parameter ""
