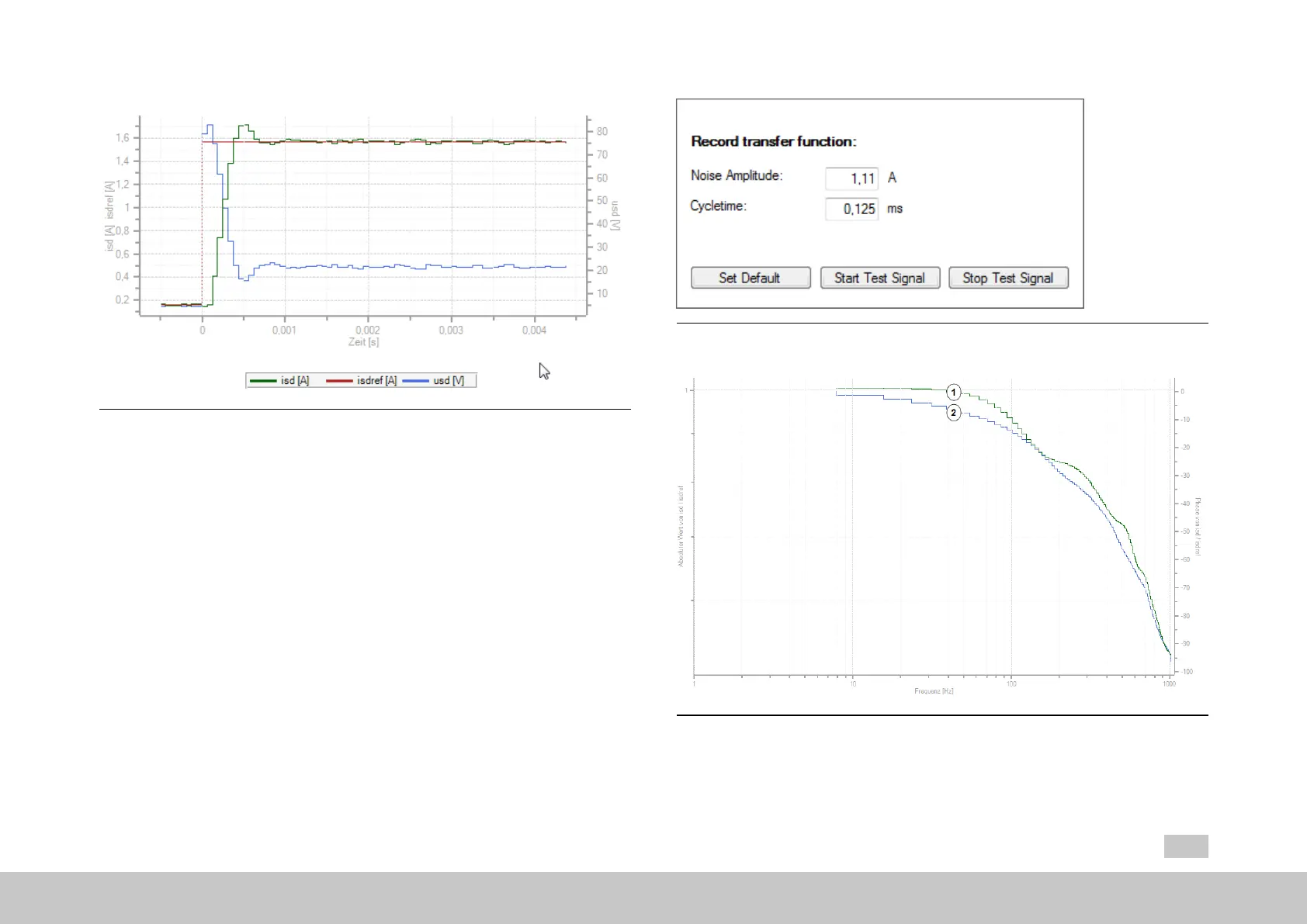

Fig. 7.6: Current controller optimization
7.3.2Creatingthetransferfunction
The oscilloscope automatically records the amount and phase response of the
controller according to the controller settings. This produces an initial estimate of the
control quality. To determine the transfer function, the noise amplitude (motor rated
current) and the sampling time (default: 0.125ms) must be specified. Click the "Start
Test Signal" button.
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
111
7 Control
Fig. 7.7: “Noise amplitude, sampling time” dialog box
Fig. 7.8: Current controller transfer function
