Moog MSD Servo Drive Series User Manual

14Devicestatus
Chapter overview
Pictogram
Navigation ►Projecttree►DriveSettings►Devicestatus
Brief description Thischapterdescribestheoptionsavailableforviewingthe
devicestatus.
Contents
14.1 Device status
300
14.2 Status bits
301
14.3 Load factor
301
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
300
14 Device status
14.1Devicestatus
To select various status and control signals for viewing in the oscilloscope or as
trigger signals, click on the “Scope signals of
Device status ” (at the very top of the
window).
To view detailed error information, click on the “Error history ...” button
(see Section "Alarms & warnings (Details)" on page 257).
If an error is currently present, it can be confirmed by clicking on the “Quit error”
button.
ID Index Name Unit Description
150 0 Numericalstatus Actualnumericaldevicestatus
152 0 Textualstatus Actualtextualdevicestatus
153 0 Faultreset Faultresetcommand
Table 14.1: “Device status” parameters

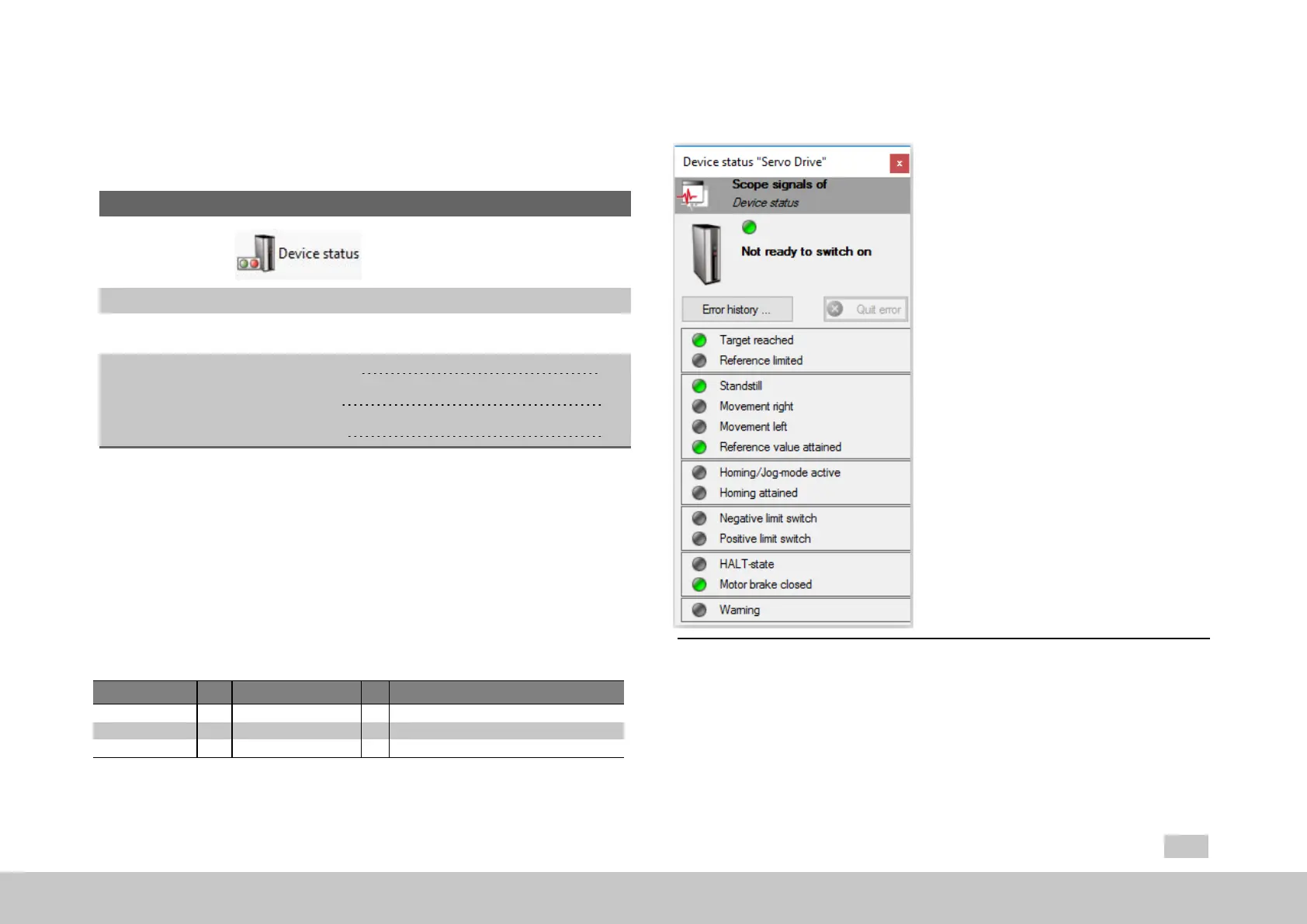

Fig. 14.1: “Device status” window
