 Quick jog
Bothdigitalinputsmustbeactive(correspondingbitsinbusmode)
 Fast jog direction left
Activate"Jogleft"inputandthenadditionallyinputtwo
 Fast jog direction right:
Activate"Jogright"inputandthenadditionallyinputtwo
8.6.2Digitalinputs

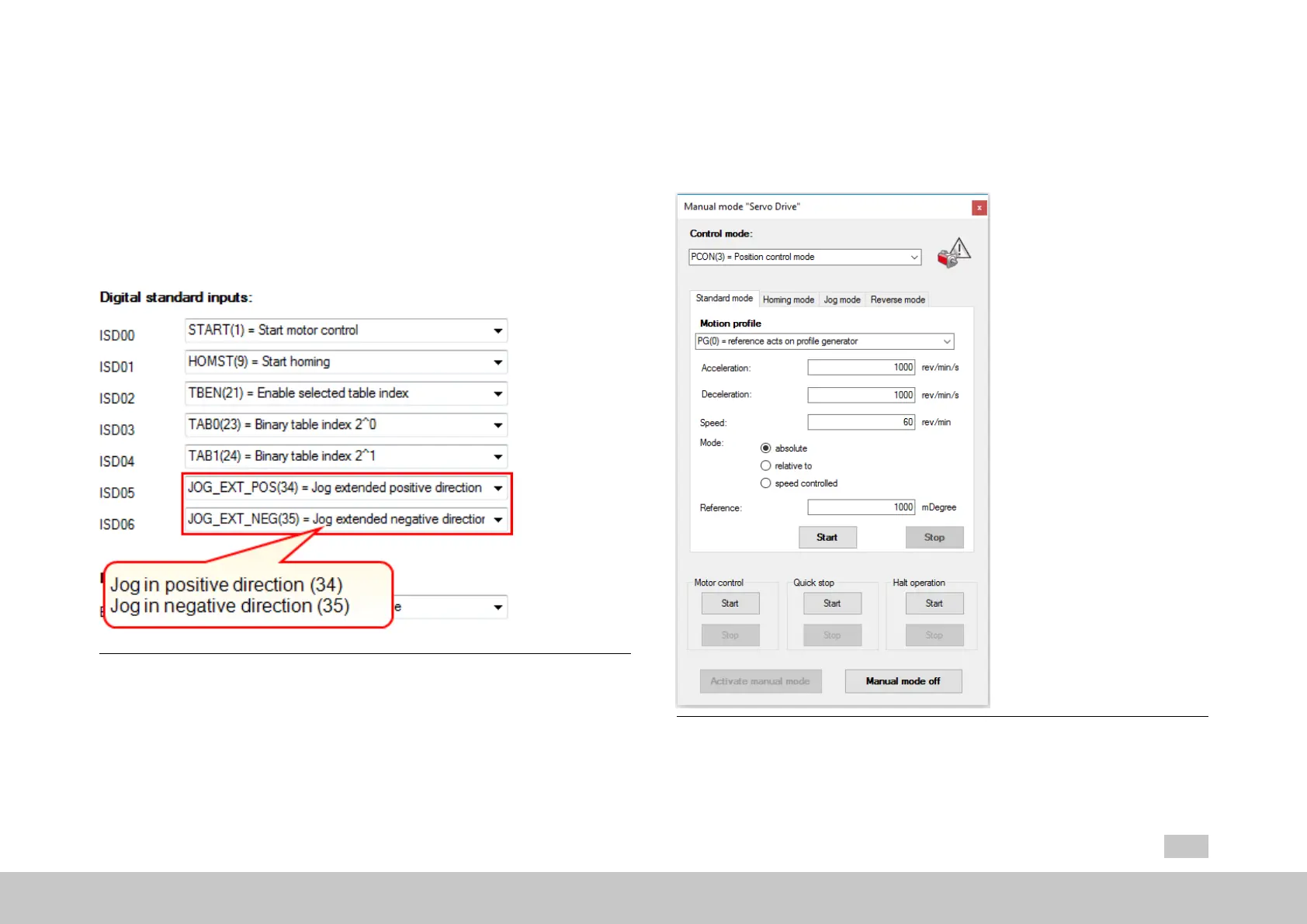

Fig. 8.64: "Digital inputs" screen
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
204
8 Motion profile
8.6.3Manualmodewindow,"Jogmode"tab
The jog speeds in the Manual mode window are oriented to the values of the "Jog
mode speed" dialog box. The drive is moved using the "Jog -" and "Jog +" buttons.
Fig. 8.65: "Jog mode" window
