Moog MSD Servo Drive Series User Manual

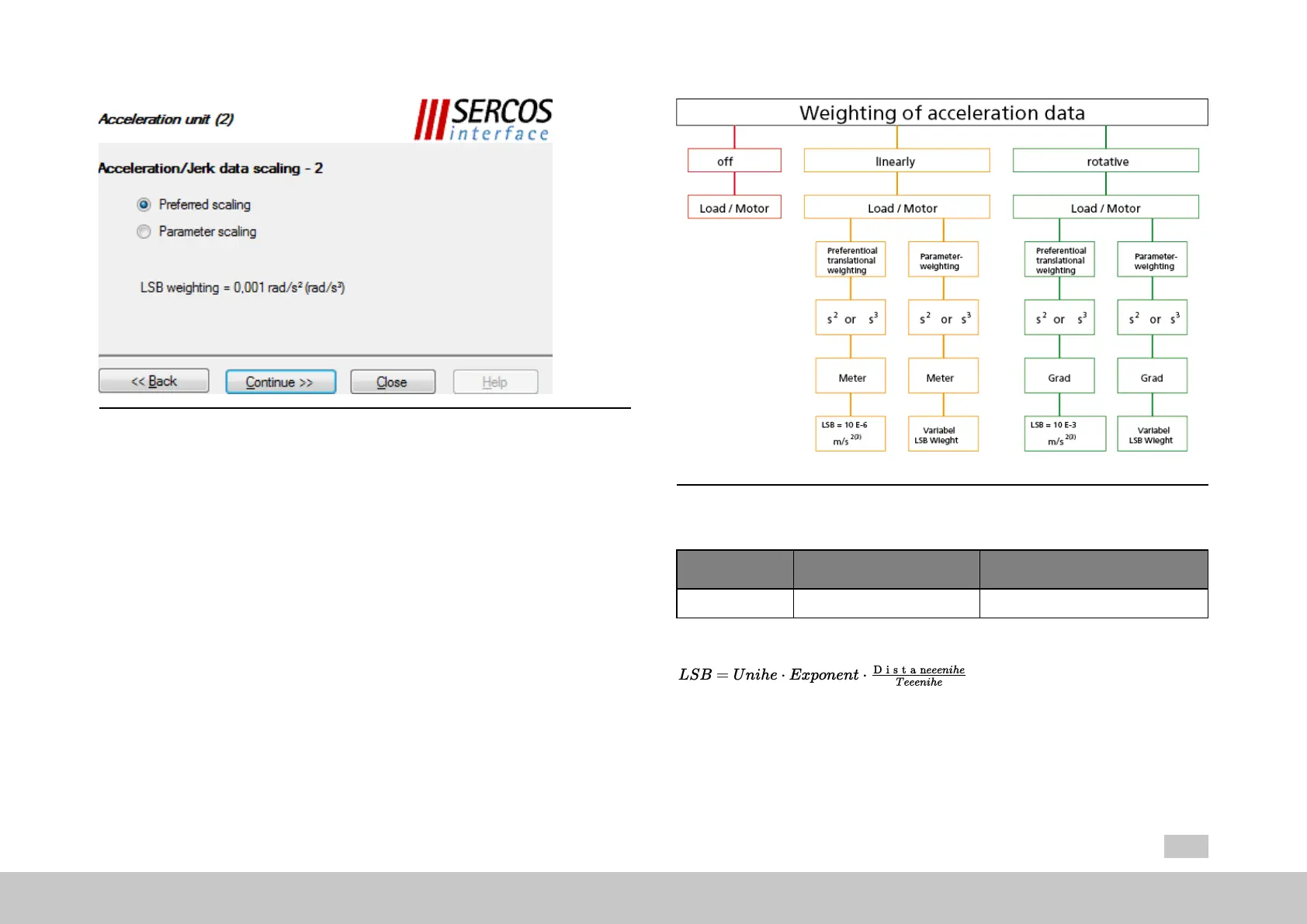

Fig. 8.21: “Standardization profile - SERCOS- Acceleration(2)” dialog box
The "Acceleration data weighting method" schematic shows the structure with which
the acceleration is scaled using the SERCOS wizard. A distinction must be made
between linear and rotary weighting here.
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
176
8 Motion profile
Fig. 8.22: Acceleration data weighting
Linear weighting
Unit Weighting factor
Factory setting (LSB)
m/s
2
1 E
-6
Table 8.12: Weighting for linear motion (default setting)
