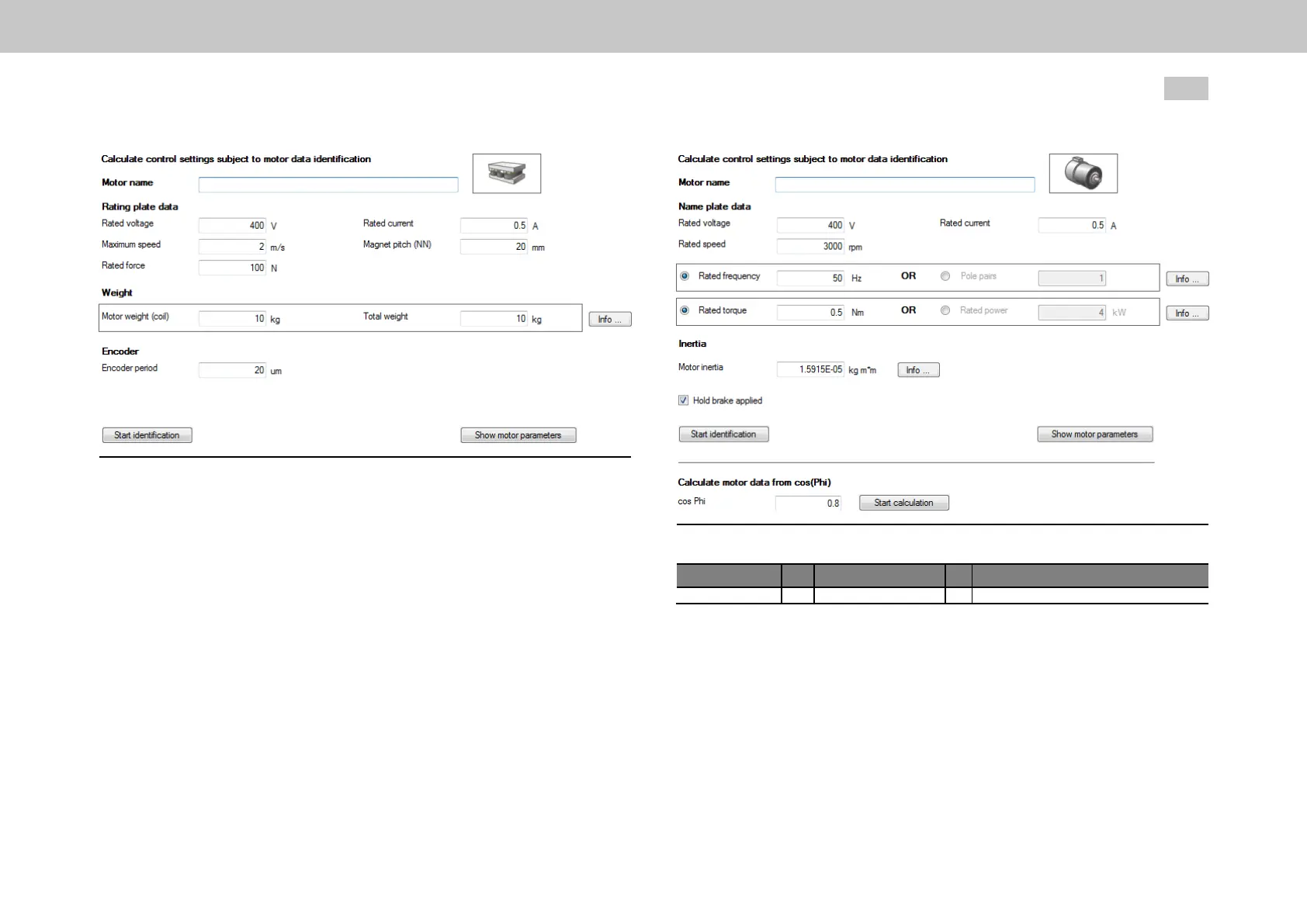

Fig. 5.12: “Motor identification" dialog box for a linear synchronous motor
MOOG
ID
No.: CB40859-001 Date: 02/2018
MSD Servo Drive- Device Help
44
5 Motor
Fig. 5.13: “Motor identification" dialog box for an asynchronous motor
ID Index Name Unit Description
1531 0 SCD_Action_Sel Self-commissioningactionselection
Table 5.8: “Motor identification” parameters
When the Rating plate data have been entered in the dialog box, identification is
started by clicking the "Start identification" button. Safety prompts must be confirmed
with a tick (check mark).
