359
F3SG-SR
User’s Manual
Chapter8 Optional Accessories (Sold Separately)
Appendix
E
Cascading Cable for Extended (Two cables per set, for emitter and receiver)
Side-by-side Cascading Cable (Two cables per set, for emitter and receiver)
F3SJ-B/A Conversion Cable
F3SG-RE Conversion Cable
MS48 Conversion Cable

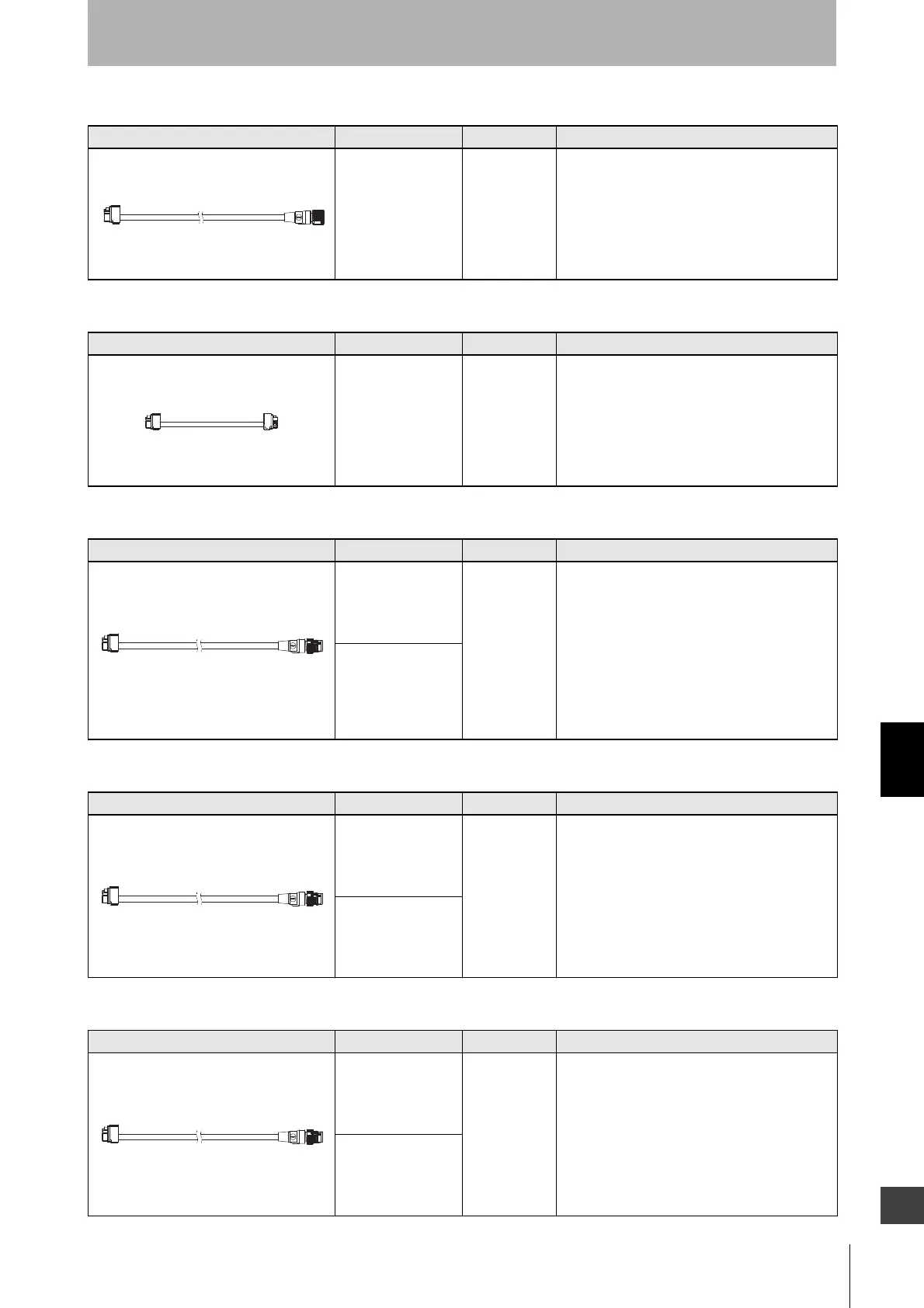

Appearance Model Cable length Remarks
F39-JGR3W 0.3 m For emitter
To sensor: dedicated connector,
To cascading sensor: M12
connector type (5 pin)
For receiver
To sensor: dedicated connector,
To cascading sensor: M12
connector type (8 pin)
Appearance Model Cable length Remarks
F39-JGR12L 12 cm For emitter
To sensor: dedicated connector 1,
To cascading sensor: dedicated
connector 2
For receiver
To sensor: dedicated connector 1,
To cascading sensor: dedicated
connector 2
Appearance Model Cable length Remarks
F39-JGR3K-SJ-L 0.3 m For emitter (F39-JGR3K-SJ-L)
To sensor: dedicated connector 1,
To wires for F3SJ-B/-A: M12
connector type (8 pin)
For receiver (F39-JGR3K-SJ-D)
To sensor: dedicated connector 1,
To wires for F3SJ-B/-A: M12
connector type (8 pin)
Used to convert the wiring for F3SJ-B/-A,F3SR-B
or F3SN Safety Light Curtain to that for the F3SG-
SR.
F39-JGR3K-SJ-D
Appearance Model Cable length Remarks
F39-JGR3K-RE-L 0.3 m For emitter (F39-JGR3K-RE-L)
To sensor: dedicated connector 1,
To wires for F3SG-RE: M12
connector type (4 pin)
For receiver (F39-JGR3K-RE-D)
To sensor: dedicated connector 1,
To wires for F3SG-RE: M12
connector type (4 pin)
Used to convert the wiring for F3SG-RE Safety
Light Curtain to that for the F3SG-SR.
F39-JGR3K-RE-D
Appearance Model Cable length Remarks
F39-JGR3K-MS-L 0.3 m For emitter (F39-JGR3K-MS-L)
To sensor: dedicated connector 1,
To wires for MS4800: M12
connector type (5 pin)
For receiver (F39-JGR3K-MS-D)
To sensor: dedicated connector 1,
To wires for MS4800: M12
connector type (8 pin)
Used to convert the wiring for MS4800 Safety
Light Curtain to that for the F3SG-SR.
F39-JGR3K-MS-D
