Chapter1 Ratings and Specifications
F3SG-SR
User’s Manual
Overview and Specifications

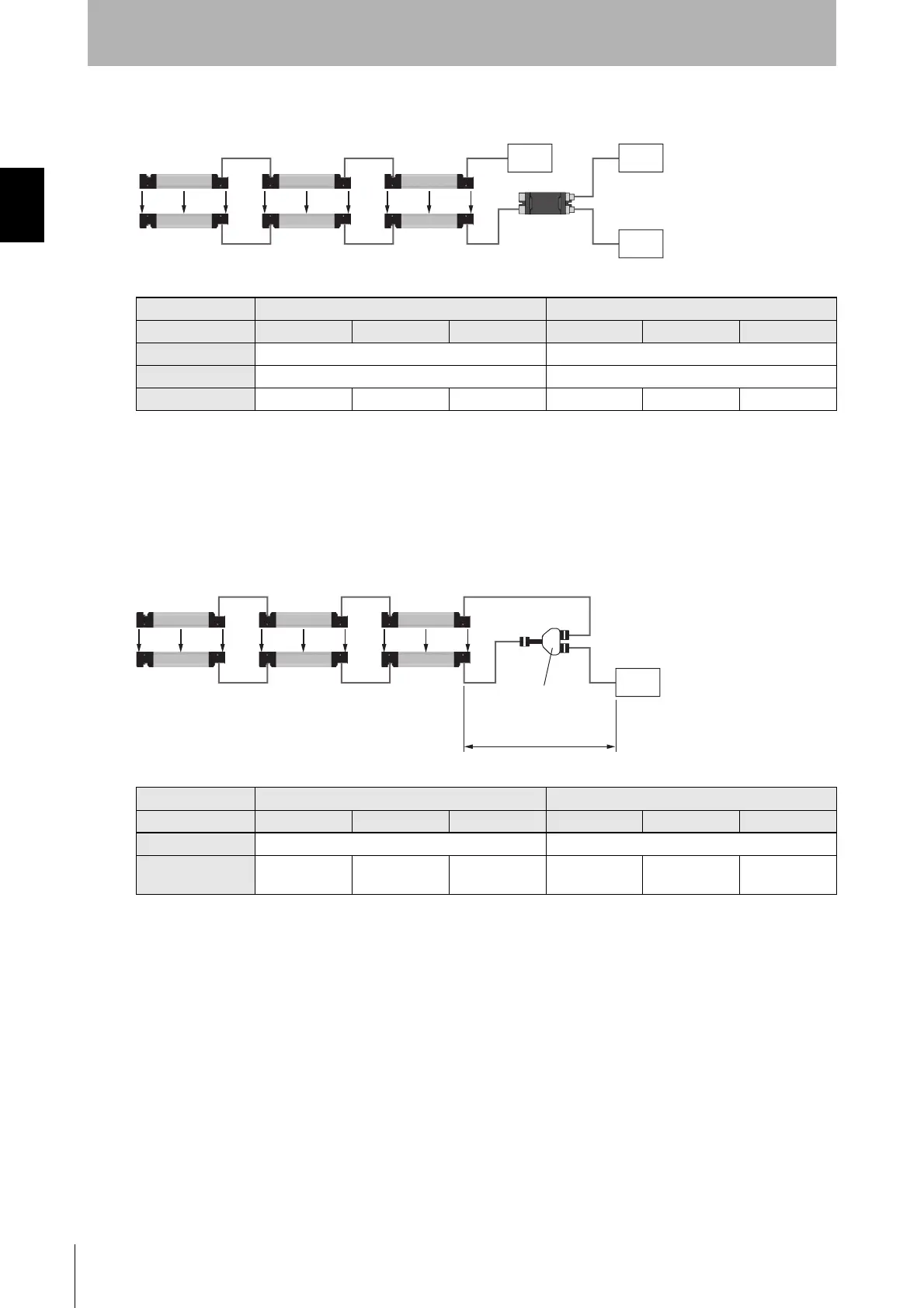

Maximum cable extension (Load condition: Safety outputs 1 and 2: 60mA, Auxiliary output : 60 mA)
*1. Cable extension when (6) is 10 m
*2. (8) must be 20 m max.
*3. Under the maximum load conditions (safety outputs 1 and 2 of 300 mA per channel and auxiliary output of 100 mA), the cable
extension must be 50% max. of the length listed in the table for the F3SG-SRA and 80% max. for the F3SG-SRB.
*4. Conditions exist for the use of the F3SG-SRA in 2-segment or 3-segment cascade. Refer to 1-5-1. F3SG-SR Series –
Electrical – Safety outputs (OSSD).
*5. Not including the Cascading Cable for Extended (F39-JGR3W) and the Root-Plug Cable for Extended (F39-JGR3K).
<Using Y-Joint Plug/Socket Connector (F39-GCNY2)>
Maximum cable extension (Load condition: Safety outputs 1 and 2: 60mA, Auxiliary output : 60 mA)
*1. Cable extension when (5) and (6) are 10 m each
*2. Under the maximum load conditions (safety outputs 1 and 2 of 300 mA per channel and auxiliary output of 100 mA), the cable
extension must be 50% max. of the length listed in the table for the F3SG-SRA and 80% max. for the F3SG-SRB.
*3. Conditions exist for the use of the F3SG-SRA in 2-segment or 3-segment cascade. Refer to 1-5-1. F3SG-SR Series –
Electrical – Safety outputs (OSSD).
*4. Not including the Cascading Cable for Extended (F39-JGR3W) and the Root-Plug Cable for Extended (F39-JGR3K).
Sensor F3SG-SRA *1 *3 F3SG-SRB *1 *3
Cascading Single 2-segment *4 3-segment *4 Single 2-segment 3-segment
(1),(2),(3),(4) 10 m each *5 10 m each *5
(5) 100 m 100 m
(6)+(7) ≤ 100 m ≤ 100 m ≤ 80 m ≤ 100 m ≤ 100m ≤ 100 m
Sensor F3SG-SRA *1 *2 F3SG-SRB *1 *2
Cascading Single 2-segment *3 3-segment *3 Single 2-segment 3-segment
(1),(2),(3),(4) 10 m each *4 10 m each *4
L: (5)+(7)
(6)+(7)
≤ 100 m ≤ 70 m ≤ 60 m ≤ 100 m ≤ 90 m ≤ 80 m
(5)
(6)
Emitter
Receiver
(1)
(2)
(3)
(4)
Power
supply
(8)*2
(7)
Power
supply
IO-Link
master
- Optical synchronization
(5)
(6)
Emitter
Receiver
Y-Joint Plug/
Socket Connector
(F39-GCNY2)
L = 100 to 60 m
(1)
(2)
(3)
(4)
(7)
Power
supply
