Analog unit instructions
1093
Part IV Tool Instructions

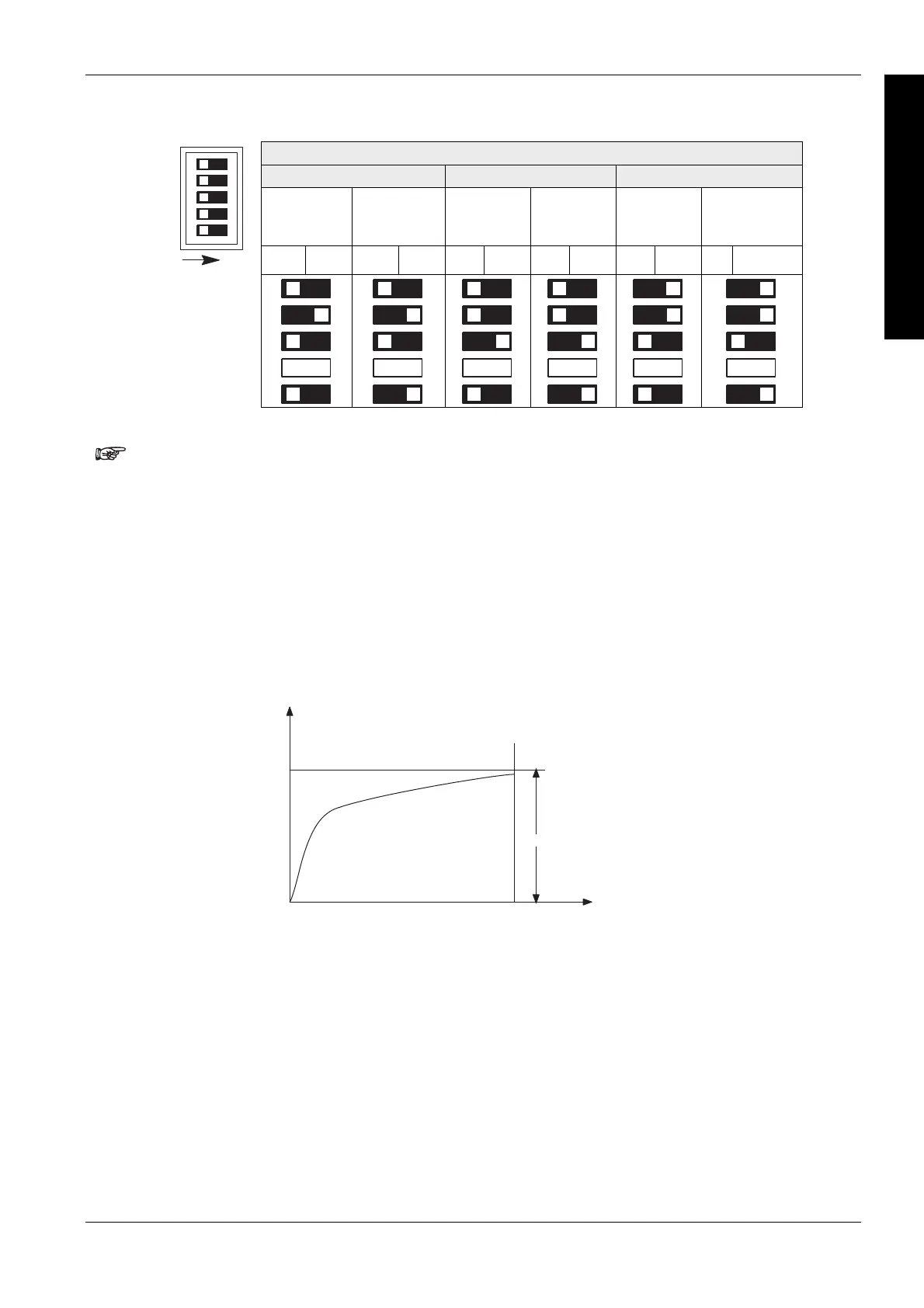

Thermocouples, see notes 3, 4
K Type J Type T Type
Temperature
of terminal to
1000 °C
-100 °C to
Temperature
of terminal
Temperature
of terminal to
750 °C
-100 °C to
Temperature
of terminal
Temperature
of terminal to
350 °C
-100 °C to
Temperature of
terminal
ON
1
2
3
4
5
Off On Off On Off On Off On Off On Off On
1
2
3
4
5
1. No averaging: Conversion data is set for the specified input contact point
area for each A/D conversion, on each channel.
2. With averaging: on each channel, for each A/D conversion, the maximum and
minimum values from the data of the last ten times are excluded, and the
data from the other eight times is averaged, and the result set.
3. If a thermocouple setting is used, averaging is carried out, regardless of the
switch settings.
4. After turning on the analog unit, 20 minutes are required for the transient
state to reach a measurement accuracy of 99%. During this time, deviations
of 10°C can occur.
99%
±10 °C
20 min
time
measurement accuracy
5. The DIP switch settings are read once at switching the CPU power to ON.
Changes of the DIP switches are not recognized until the next reset of the
CPU (power OFF ON).
