Panasonic FP Series User Manual

Counter instructions
704
Part III FP Instructions
Body

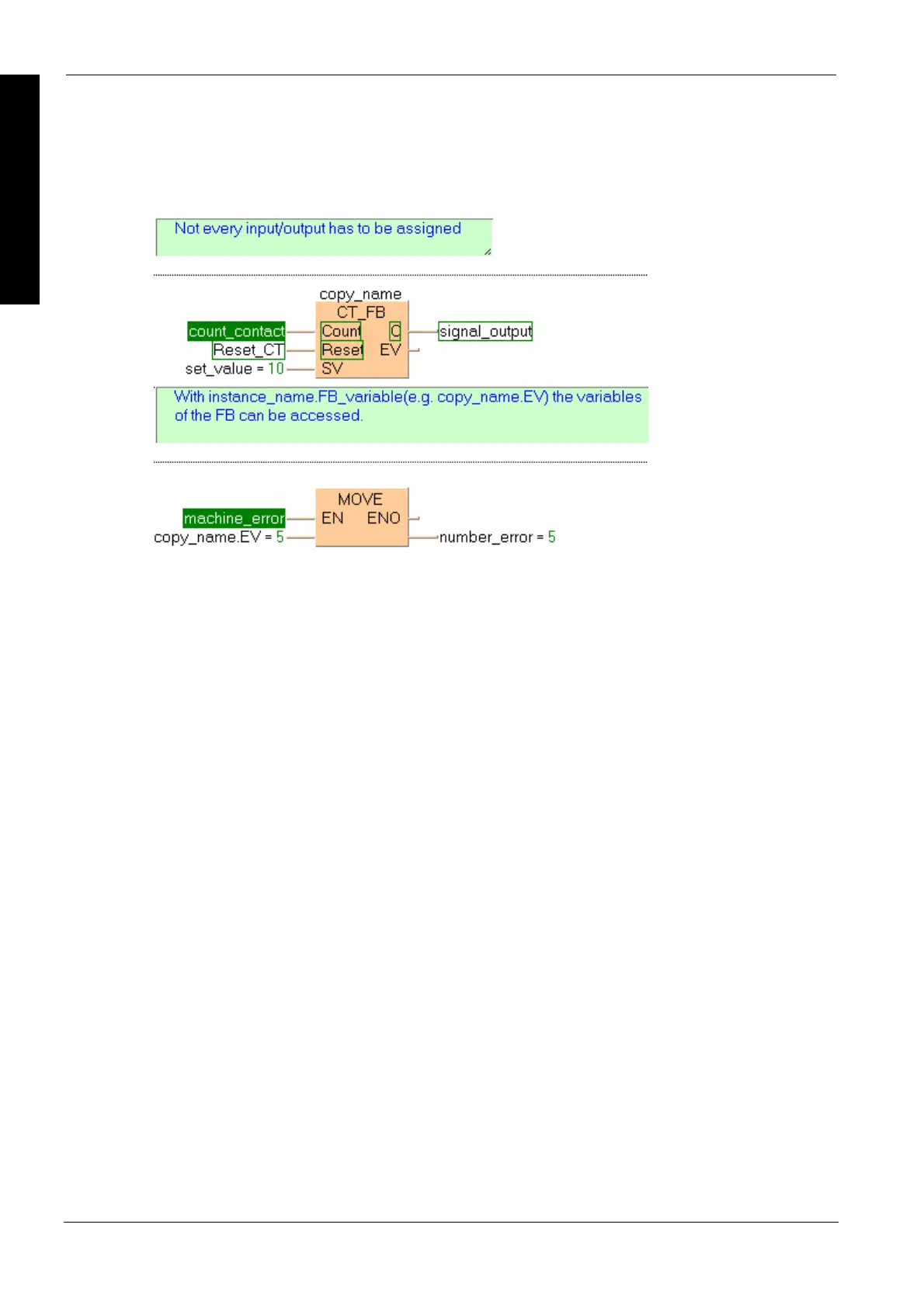

This example uses variables. You may also use constants for the input variables. Each rising edge
detected at count_contact the value 1 is subtracted from the elapsed value EV. Signal_output is
set to TRUE if the elapsed value EV becomes zero.
LD
