7.16 F15 Group: Auxiliary Function
No.
Function
Range
Unit
Default
Type
F15.00
JOG Frequency
0.00 - Maximum Frequency
F00.16
Hz
5.00
●
F15.01
JOG Acceleration
Time
0.00 - 650.00 (F15.13=0)
0.0 - 6500.0 (F15.13=1)
0 - 65000 (F15.13=2)
s
5.00
●
F15.02
JOG Deceleration
Time
0.00 - 650.00 (F15.13=0)
0.0 - 6500.0 (F15.13=1)
0 - 65000 (F15.13=2)
s
5.00
●
As indicated in Figure 7-32, if FJOG/RJOG is enabled, inverter will start running at
the frequency set through F15.00; after it is disabled, inverter will stop as per the stop
mode.
When inverter is running, F15.01 and F15.02 are set as acceleration and deceleration
time. However, the set values (for example 500) have different meanings and ranges,
depending upon the time unit (F15.13). If F15.13=0, it means that the
acceleration/deceleration time is 5.00s; if F15.13=1, it means that the
acceleration/deceleration time is 50.0s.

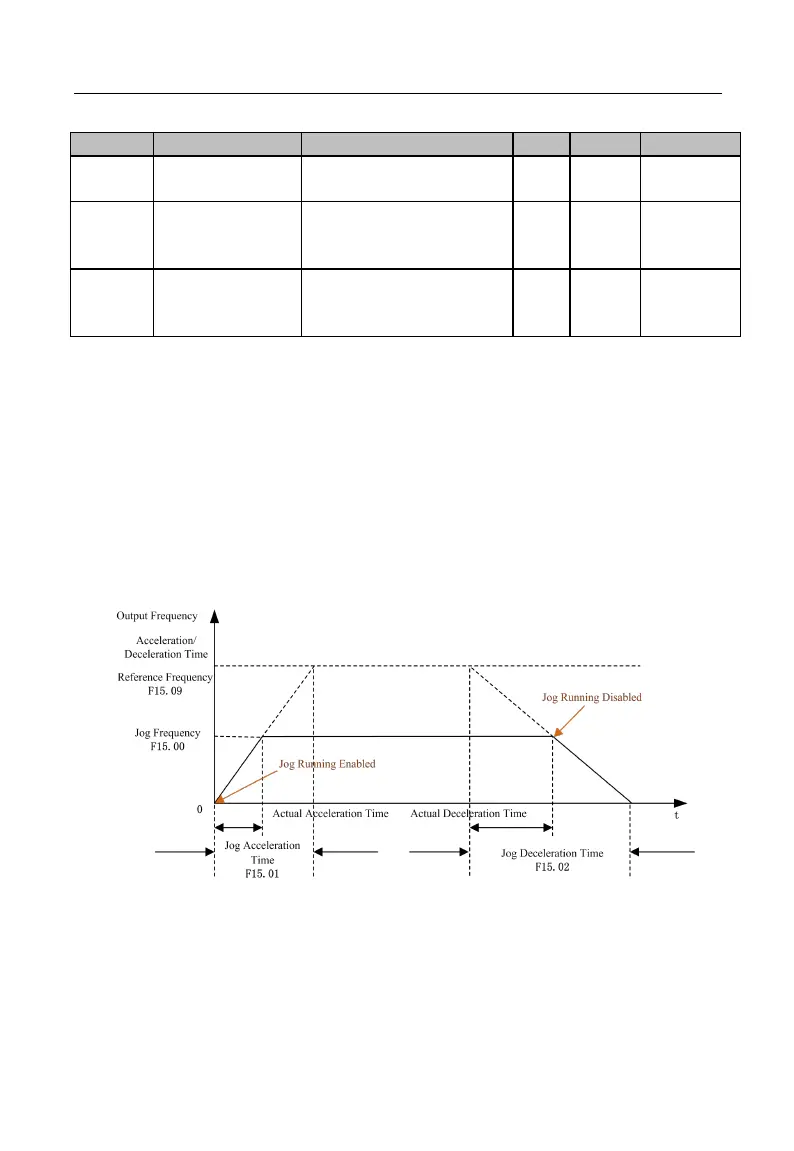

Figure 7-32 Jog Running
★
:JOG running mode, user may independently set frequency and
acceleration/deceleration time, which shall not be shared but not having the same
