Sinee EM500 - DIP Switch of IO Expansion Card

To Next Page

To Previous Page

EM500 Open-Loop Vector Control Inverter User Manual

440

Input

input mode is selected by switch S2 on IO

expansion card.

Input impedance: Voltage mode 1 MΩ

PT-GND

Temperature Sensor

Input

PT100 and PT1000 Temperature Sensor

Input

Control mode is selected through

switches S2 and S2 on IO expansion card.

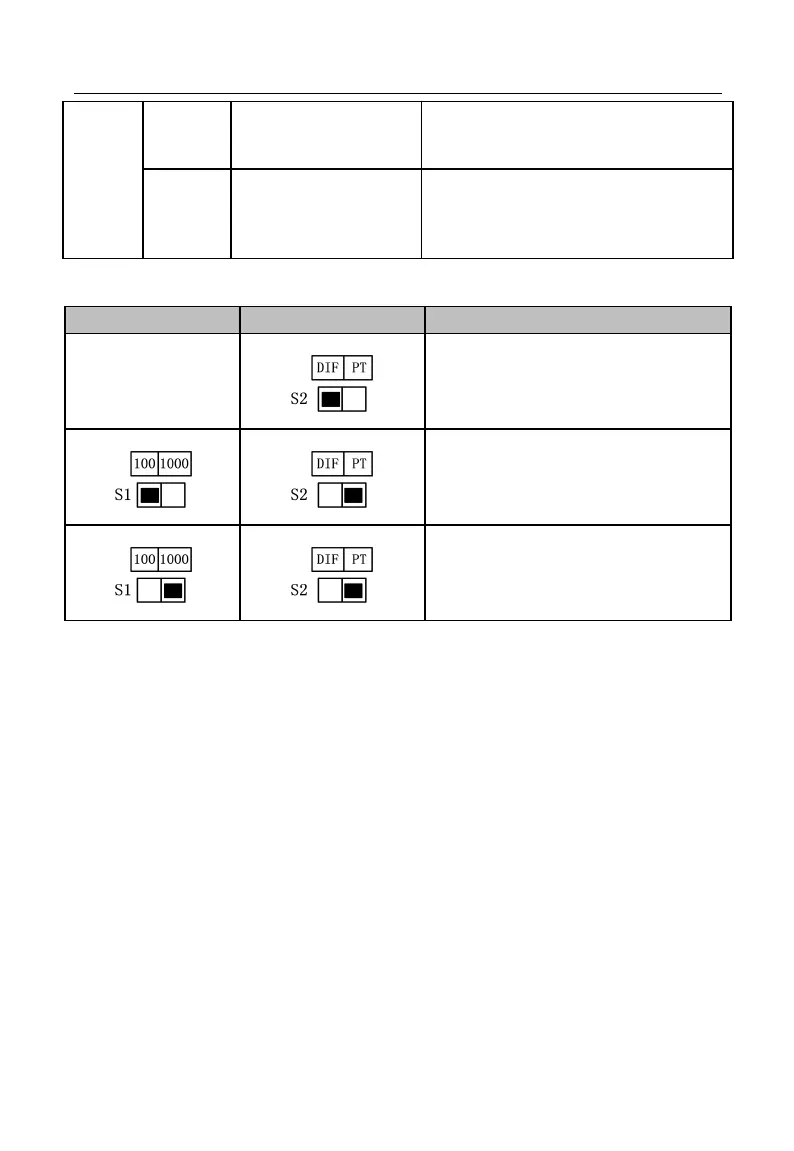

Table 2 DIP Switch of IO Expansion Card

Function

———

AI4 Voltage Input, Enabled

PT Input, Disabled

AI4 Voltage Input, Disabled

PT input is through temperature sensor

PT100

AI4 Voltage Input, Disabled

PT input is through temperature sensor

PT1000
