EM500 Open-Loop Vector Control Inverter User Manual

443

Appendix III Profibus-DP Expansion Card

(EC-CM-P1)

III.1 General

Communication card EC-CM-P1 is defined as PROFIBUS-DP slave

communication card and used to connect EM500 inverter to PROFIBUS-DP

network.

Main features:



Support PZD control data exchange.



Support PKW access to inverter parameters.



Support the user diagnosis function.



Automatic detection of communication rate, up to 12 Mbps.

III.2 Installation Instructions



Install Profibus-DP expansion card into the expansion slot EC-B (make sure that

it is installed and buckled properly).



Disassemble or install Profibus-DP expansion card only after inverter is powered

off.

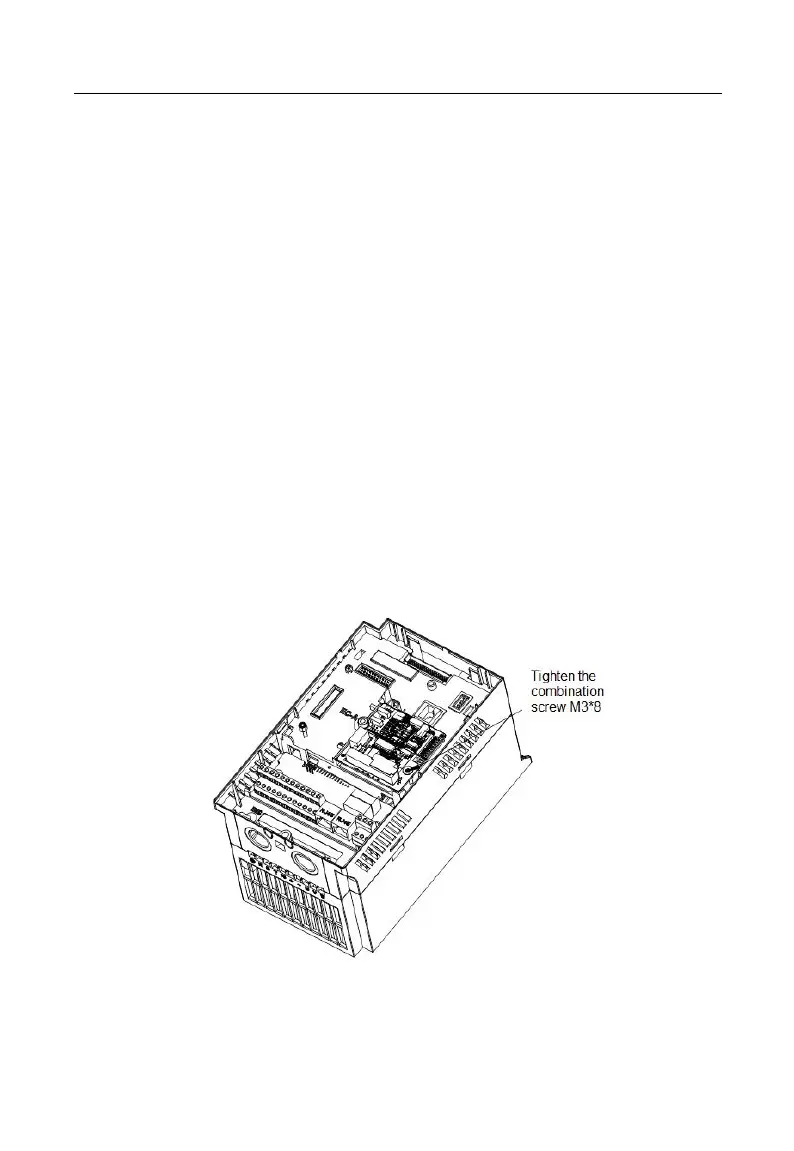

Figure 3 Installation of Profibus-DP expansion card
