EM500 Open-Loop Vector Control Inverter User Manual
387

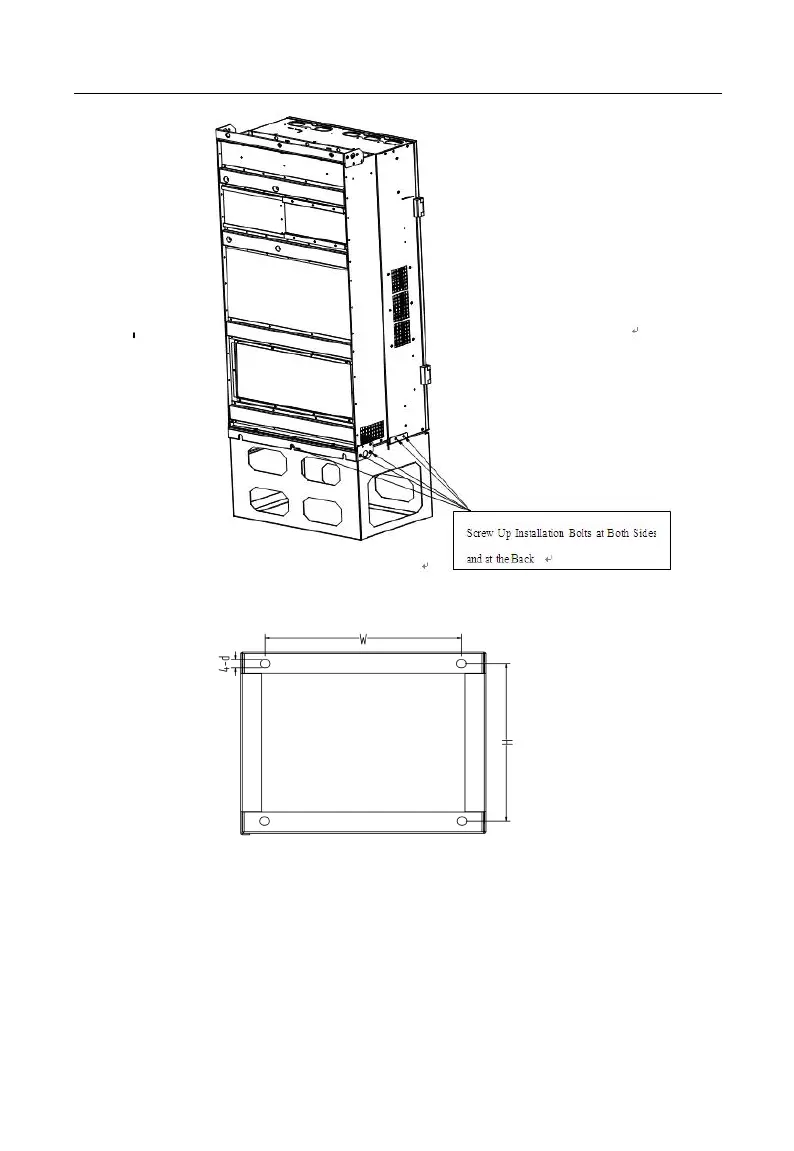

Figure 11–3 Base Installation
Figure 11-4 Installation Dimensions of Anchor Bolt of Base
EM500 large-power inverter (450 - 560kW) can be accompanied with an installation
base and top cover with the same width as inverter (refer to Figure 11-6). The overall
inverter height can be changed to 2000mm, if base or top cover will be replaced; the
overall inverter can be changed to 2200mm, if both base and top cover will be replaced.
