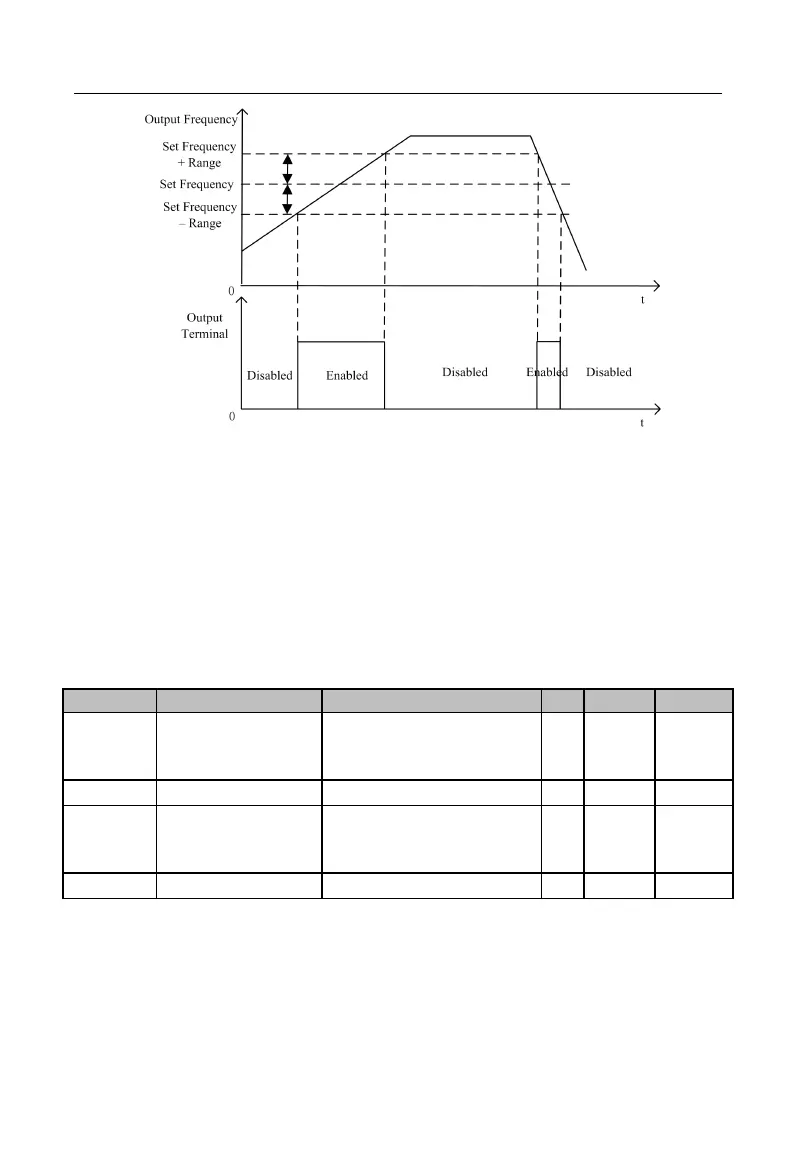

Figure 7-36 FAR Detection
As indicated in Figure 7-36, when the multi-function output terminal or relay output
is set as “2: FAR”, if the absolute value of the difference between output frequency and
the set input frequency is less than or equal to FAR (F15.20) during inverter running
(non-autotuning), the multi-function output terminal outputs active level, otherwise the
multi-function output terminal outputs inactive level.
Output Frequency
Detection Range
FDT1
0.00 - Maximum
Frequency F00.16
Output Frequency
Detection Range
FDT2
0.00 - Maximum
Frequency F00.16
