Sinee EM500 - APPENDIX II MULTI-FUNCTIONAL IO EXPANSION CARD 3 (EC-IO-A3); II.1 GENERAL; II.2 INSTALLATION INSTRUCTIONS

To Next Page

To Previous Page

EM500 Open-Loop Vector Control Inverter User Manual

441

Appendix II Multi-Functional IO Expansion Card 3

(EC-IO-A3)

II.1 General

EC-IO-A3 card is used for EM500 control terminal expansion, including the

following resources:

Item

Specification

Description

Input

1 temperature input

Support PT100, KTY84-130/150 and

PTC130/150 temperature sensor

Output

1 relay output (NO)

Y3：EA3-EC3, maximum output current

of OC is 50mA; relay contactor capacity:

250VAC/3A or 30VDC/1A

Power Supply

+15V

+15V-GND, max. output current is

100mA

II.2 Installation Instructions



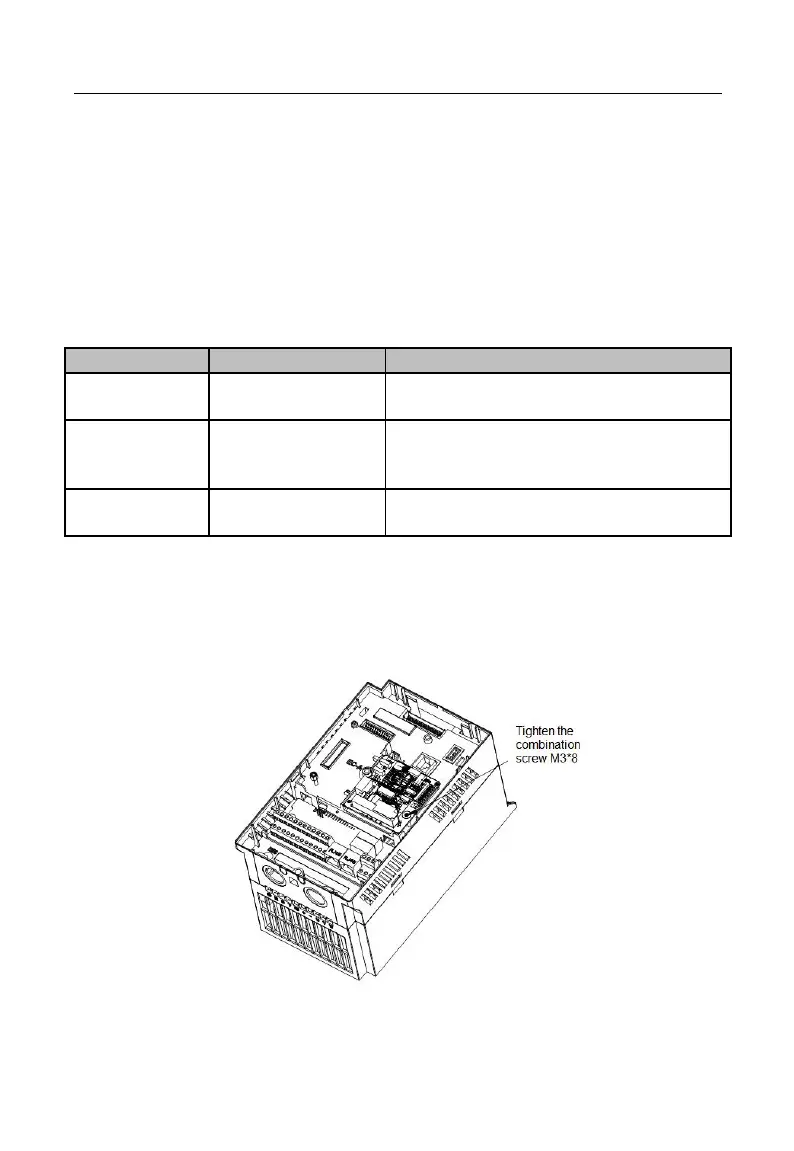

Install IO expansion card 3 into the expansion slot EC-B (make sure that it is

installed and buckled properly).



Disassemble or install IO expansion card 3 only after inverter is powered off.
