2.5 Assembly and Disassembly of Keypad
Generally it’s not necessary to disassemble keypad while using an inverter. If
necessary, observe the following methods to disassemble or install keypad. The keypad
cover should be used for inverter 22kW and above if the keypad is disassembled
Disassemble keypad: Put your fingers in finger slots on the top of keypad, press
down keypad slightly and pull it outward (see Figure 2–3). For more than 22 kw
inverter, after dismantling the keyboard, also need to use the attached cap to cover
the hole.

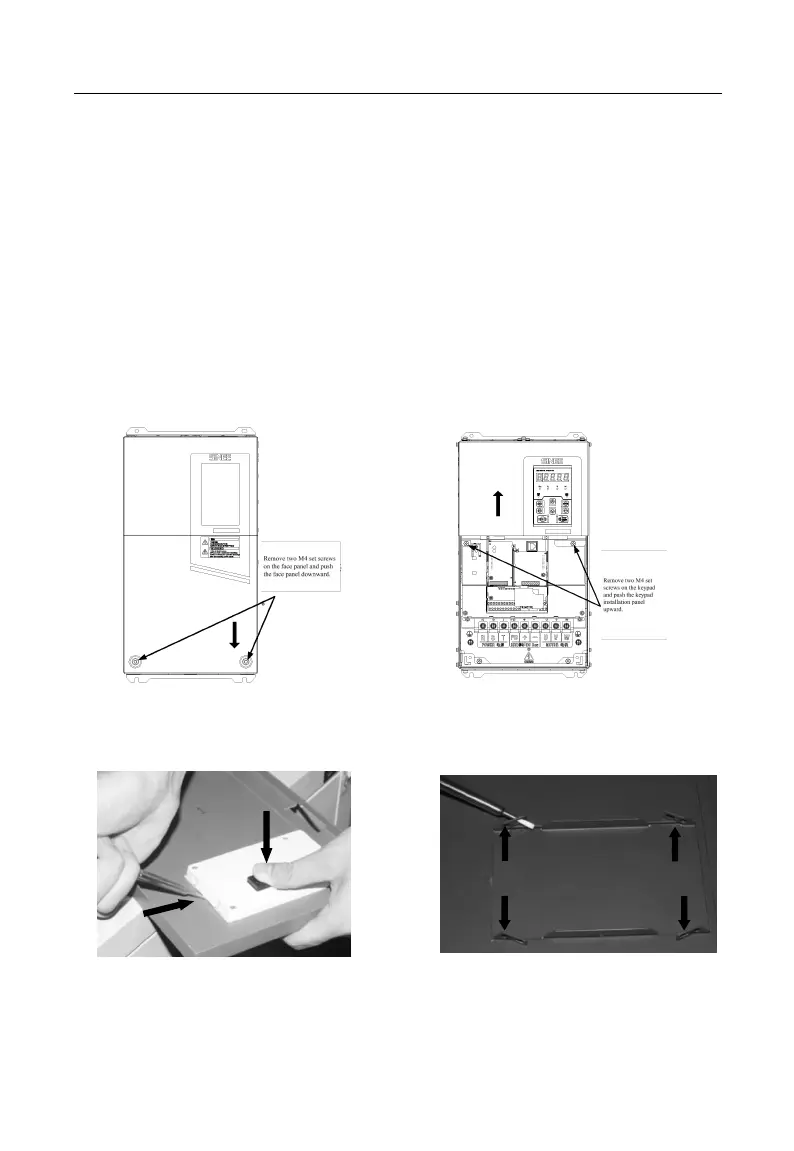

Step 1: Step 2:
Step 3: Step 4:
Figure 2-3 Disassemble Keypad
